Product Overview

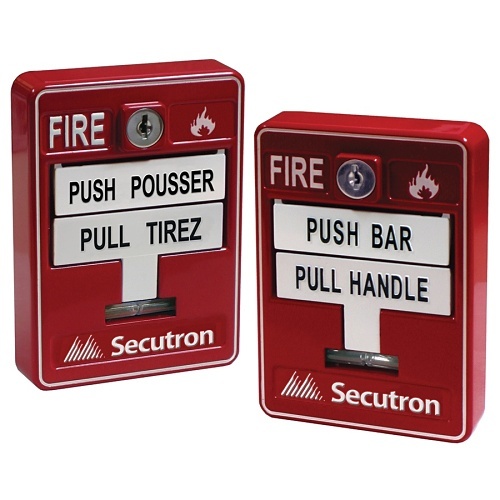

Secutron’s MRM-710MP(U) Series Intelligent Manual Station is made of a high quality, die-cast metal and is available as a dual-action device with key resets and a permanently attached intelligent module. Pulling the handle initiates the operation of the intelligent module. The MRM-710MP(U) Series is available with CAT-30 keys and mount on a standard single gang back-box, Secutron model MRM-700 interior surface metal backbox. Secutron’s MP Protocol devices use a high speed communication protocol that greatly increases the speed of communication between the intelligent devices. All manual fire alarm stations shall be installed as per the specific requirements outlined in the UL/ULC codes, as well as all other applicable national or local codes. Final acceptance is subject to the local authority having jurisdiction. Addressing is done using the MIX-4090 Device Programming tool. For setting the address on this device, disconnect it from the loop, or ensure that the loop to which is connected is both disconnected from the panel and shorted across the SCL+ and SLC- inputs at the device. Failing to take either of these steps may change the address programming of previously configured sensors on the loop.
Main Features
- Dual Action
- Key re-settable
- Permanently Attached Intelligent Addressable Module
- Supports MP Protocol
- Address is set using hand held device programmer
- High-gloss red enamel finish
- Plastic break rod
- Meets ADA 5lb maximum manual-force
- Mounts on standard single gang box, Secutron’s MRM-700 surface metal backbox
General Information
Name: Secutron MRM-710MPU Intelligent Addressable Key Resettable Dual Action Manual Pull Station with MP Protocol
Category: Fire, Fire Pull Stations, Dual Action Pull Stations
UPC Code: 628090283921
Country of Origin: Canada. Country of origin is subject to change.
Specifications
ADI Part Number 5T-MRM710MP Brand Name Secutron Manufacturer Part Number MRM-710MPU
