Evolution EVSP1017 HDMI 1x7 Splitter Over Cat5e,Cat6 Cable with Additional HDMI Output
EVSP1017|ZX-EVSP1017
Evolution EVSP1017 HDMI 1x7 Splitter Over Cat5e,Cat6 Cable with Additional HDMI Output
EVSP1017|ZX-EVSP1017
Key Features
What's Included
- Allows 1 HDMI source to be displayed on up to 7 HDMI displays over a single Cat5e or Cat6 cable
- Transmission Range: Extends 1080p resolutions up to 164'/50m to receiver units (EVRX2006 or EVWP2006RX sold separately)
- Features Power over Ethernet (PoE) Technology which transmits power over Cat5e/Cat6- allowing the receiver unit (EVRX2006) to be powered from the EVSP1017; requiring no power supply to be connected
Key Features
What's Included
- Allows 1 HDMI source to be displayed on up to 7 HDMI displays over a single Cat5e or Cat6 cable
- Transmission Range: Extends 1080p resolutions up to 164'/50m to receiver units (EVRX2006 or EVWP2006RX sold separately)
- Features Power over Ethernet (PoE) Technology which transmits power over Cat5e/Cat6- allowing the receiver unit (EVRX2006) to be powered from the EVSP1017; requiring no power supply to be connected
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- Allows 1 HDMI source to be displayed on up to 7 HDMI displays over a single Cat5e or Cat6 cable
- Transmission Range: Extends 1080p resolutions up to 164'/50m to receiver units (EVRX2006 or EVWP2006RX sold separately)
- Features Power over Ethernet (PoE) Technology which transmits power over Cat5e/Cat6- allowing the receiver unit (EVRX2006) to be powered from the EVSP1017; requiring no power supply to be connected
Evolution by Vanco
Evolution EVSP1017 HDMI 1x7 Splitter Over Cat5e,Cat6 Cable with Additional HDMI Output
EVSP1017 | ZX-EVSP1017
Please sign in to view pricing and availability and to add to cart.
Accessories
Power Conditioners
ADI # WT-WB800IP12
MODEL # WT-WB800IP12
WT-WB800IP12|WT-WB800IP12
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

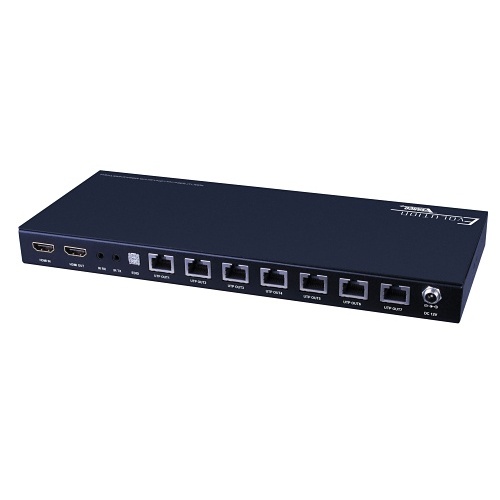

The Evolution by Vanco EVSP1017 1x7 HDMI Splitter over Cat5e/6 with IR and PoE capability, splits a single HDMI signal to seven outputs over Cat5e/6, with a loop-out HDMI port, which can be used for a local display, or to cascade to create additional outputs. Compatible with the EVRX2006 receiver (sold separately), which requires no power supply as the EVSP1017 provides PoE (Power over Ethernet). Extends high definition video and audio signals, IR, and power at a distance of up to 164ft/50m over a single Cat5e/6 cable. Includes dynamic EDID management, which can be adjusted to overcome compatibility issues, and has auto-EQ as the unit automatically adjusts for compatibility and gain. Take any source and split the signal to multiple displays that are too far away for an HDMI cable to reach, along with control via IR to control the lone source, creating a perfect and seamless solution for residential or commercial applications.
Main Features
- Allows 1 HDMI source to be displayed on up to 7 HDMI displays over a single Cat5e or Cat6 cable
- Transmission Range: Extends 1080p resolutions up to 164'/50m to receiver units (EVRX2006 or EVWP2006RX sold separately)
- Features Power over Ethernet (PoE) Technology which transmits power over Cat5e/Cat6- allowing the receiver unit (EVRX2006) to be powered from the EVSP1017; requiring no power supply to be connected
- Dynamic or manual EDID management; ability to manually select the best compatible EDID or automatically blend EDID of the 8 connected HDMI sinks
- Additional HDMI output for local display or to connect an additional EVSP1017 to cascade for an expanded distribution system
- Supports HDMI Deep Color and 3D
- Supports multiple audio formats including Dolby True HD- DTS-master- etc.
- Wide band IR system allowing for control of the single source from any of the displays connected
- Wideband IR signal from 20KHz to 60KHz
- HDCP Compliant
General Information
Name: Evolution EVSP1017 HDMI 1x7 Splitter Over Cat5e,Cat6 Cable with Additional HDMI Output
Category: Evolution by Vanco, Residential AV, Pro AV, Residential Video Signal Distribution, Commercial Video Signal Distribution, HDMI Splitters, Pro HDMI Splitters
UPC Code: 741835106047
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
-
ADI Part Number ZX-EVSP1017 Brand Name Evolution by Vanco Manufacturer Vanco International, Inc Manufacturer Part Number EVSP1017 Product Line Evolution Product Model EVSP1017 Product Name Evolution HDMI 1×7 Splitter over Cat5e/Cat6 Cable with Additional HDMI Output Product Type HDMI Splitter
-
Maximum Operating Distance 164'
-
Maximum Video Resolution 1920 x 1080
-
HDMI In Yes HDMI Out Yes Network (RJ-45) Yes Number of HDMI Inputs 1 Number of HDMI Outputs 1 Number of Network (RJ-45) Ports 7 USB Yes
-
Depth 4.4" Height 1" Width 10.6"
-
Input Voltage 230V AC
-
Country of Origin TW Package Contents - Evolution HDMI 1×7 Splitter over Cat5e/Cat6 Cable with Additional HDMI Output
- IR Blaster (TX)
- IR Receiver (RX)
- DC 12V 2A Power Supply
- Product Manual
