Image of SQ-6320A1F2Z
Shop all Hanwha Vision

Hanwha TNU-X6320A1F2WT1-Z 2MP Explosion Proof PTZ Camera, 24VAC

TNU-X6320A1F2WT1-Z|SQ-6320A1F2Z
Shop all Hanwha Vision

Hanwha TNU-X6320A1F2WT1-Z 2MP Explosion Proof PTZ Camera, 24VAC

TNU-X6320A1F2WT1-Z|SQ-6320A1F2Z
Key Features
  • 4.44-142.6 mm (32x) Optical zoom, 16x digital zoom
  • H.265, H.264, MJPEG Triple codec, WiseStream II
  • DIS with built-in Gyro sensor
Key Features
  • 4.44-142.6 mm (32x) Optical zoom, 16x digital zoom
  • H.265, H.264, MJPEG Triple codec, WiseStream II
  • DIS with built-in Gyro sensor

Sign In for Dealer Pricing

Become an ADI Customer
Camden
Key Features
  • 4.44-142.6 mm (32x) Optical zoom, 16x digital zoom
  • H.265, H.264, MJPEG Triple codec, WiseStream II
  • DIS with built-in Gyro sensor
Image of SQ-6320A1F2Z
Hanwha Vision

Hanwha TNU-X6320A1F2WT1-Z 2MP Explosion Proof PTZ Camera, 24VAC

TNU-X6320A1F2WT1-Z | SQ-6320A1F2Z

Please sign in to view pricing and availability and to add to cart.

Accessories

Camera Mounts
Hanwha Techwin Ht-E-Bpw6800 Wall Mount For Surveillance Camera - Polished Stainless Steel
ADI # SQ-HTEBPW680
MODEL # HT-E-BPW6800
Hanwha Vision
Hanwha HT-E-BPW6800 Wall Mount for Surveillance Camera Polished Stainless Steel
HT-E-BPW6800|SQ-HTEBPW680
Sign In for Dealer Pricing
Housing & Mounting Accessories
Image of SQ-HTEXWP10U
ADI # SQ-HTEXWP10U
MODEL # HT-E-XWP10UL
Hanwha Vision

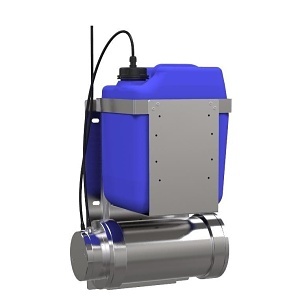

Hanwha HT-E-XWP10UL T Series Explosion Proof Accessory Washer Tank, Stainless Steel
HT-E-XWP10UL|SQ-HTEXWP10U
Sign In for Dealer Pricing
Power Conditioners
Image of WT-WB700IP12
ADI # WT-WB700IP12
MODEL # WB-700-IPV-12
WattBox
WattBox WB-700-IPV-12 IP Power Conditioner with OvrC Home, 12-Controlled Outlets
WB-700-IPV-12|WT-WB700IP12
Sign In for Dealer Pricing
Power Conditioners
Image of WT-WB800IP12
ADI # WT-WB800IP12
MODEL # WB-800-IPVM-12
WattBox
WattBox WB-800-IPVM-12 800 Series IP Power Conditioner, 12-Individually Controlled and Metered Outlets
WB-800-IPVM-12|WT-WB800IP12
Sign In for Dealer Pricing
Network Video Recorders (NVRs)
Image of VM-LUVR8CH6T
ADI # VM-LUVR8CH6T
MODEL # LUM-220-NVR-8CH-6T
Luma
Luma LUM-220-NVR-8CH-6T 220 Series 8-Channel NVR, 8-Port PoE, 2 HDD Bay, 6TB
LUM-220-NVR-8CH-6T|VM-LUVR8CH6T
Sign In for Dealer Pricing
Overview
Specifications
Documents

Product Overview

The TNU-X6320A series is an explosion-protected PTZ camera station for use in hazardous areas in onshore, offshore, marine, and heavy industrial environments. The base unit carries dual NPT cable entries with easy access for cable termination during installation as standard, maximizing compatibility and ease of use with existing fixed conduit installations.

  • 2MP (1920 x 1080) resolution
  • 4.44-142.6mm (32x) optical zoom, 16x digital zoom
  • H.265, H.264, MJPEG triple codec, WiseStream II
  • DIS with built-in Gyro sensor
  • Day & Night (ICR), WDR (120dB)
  • Video Analytics, dual SDXC memory slots
  • cLCus C1/D1 certified
  • Electro-polished 316L stainless steel on all welded assemblies
  • Camera station window in toughened glass
  • Integrated Wiper
  • 24VAC Supply voltage
  • -40°C ~ +60°C (-40°F ~ +140°F) Operating temperature
  • IP66/IP67 rated
  • Single Mode Fiber 9/125µm 10/100Mb Ethernet

Main Features

  • 4.44-142.6 mm (32x) Optical zoom, 16x digital zoom
  • H.265, H.264, MJPEG Triple codec, WiseStream II
  • DIS with built-in Gyro sensor
  • Day and Night (ICR), WDR 120 dB
  • Video Analytics, dual SDXC memory slots
  • cLCus C1 / D1 Certified
  • Electro-polished 316L stainless steel on all welded assemblies
  • Camera station window in toughened glass
  • Integrated Wiper
  • IP66 / IP67 Rated

General Information

Name: Hanwha TNU-X6320A1F2WT1-Z 2MP Explosion Proof PTZ Camera, 24VAC
Category: Hanwha Vision, Video Surveillance, IP Cameras, PTZ Security Cameras
UPC Code:
Country of Origin: UK. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
Installation Instructions
