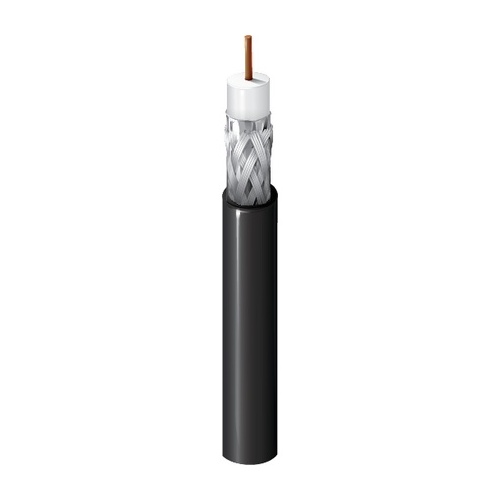

Belden 1695A 0101000 75 Ohms SDI Coax, RG-6, 18 AWG Solid BC Conductor, 1000', FEP Insulation, Foil 95% Tinned Copper Braid Shield, PVC Jacket, CMP, Black
1695A 0101000
|7B-1695A0101
Shop all Belden
Belden 1695A 0101000 75 Ohms SDI Coax, RG-6, 18 AWG Solid BC Conductor, 1000', FEP Insulation, Foil 95% Tinned Copper Braid Shield, PVC Jacket, CMP, Black
1695A 0101000 | 7B-1695A0101
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Belden 1695A 0101000 is a professional-grade SDI coaxial cable designed for reliable signal transmission. It features a 75 Ohms impedance with RG-6 construction and an 18 AWG solid bare copper conductor wrapped in FEP insulation. The cable is shielded with foil and a 95% tinned copper braid to reduce interference, finished with a black PVC jacket rated for CMP plenum use. This low-loss cable supports high-quality digital video applications and is manufactured in the USA according to HTS 8544.20.0000 standards.
Main Features
- 75 Ohms impedance SDI coax cable
- RG-6 18 AWG solid bare copper conductor
- FEP foam insulation core
- 95% tinned copper braid foil and braid shield
- PVC Flamarrest jacket, CMP rated for plenum use
- 1000'
General Information
Name: Belden 1695A 0101000 75 Ohms SDI Coax, RG-6, 18 AWG Solid BC Conductor, 1000', FEP Insulation, Foil 95% Tinned Copper Braid Shield, PVC Jacket, CMP, Black
Category: Belden, Wire & Cable, Coaxial Cables
UPC Code: 612825121190
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-1695A0101 Brand Name Belden Manufacturer Part Number 1695A 0101000
American Wire Gauge 18AWG Application/Usage 6 Gb/s UHDTV, Digital Video, HD-SDI 1080p Cable Rating Plenum Cable Type Bare Copper Conductor Count 1 Conductor Material Bare Copper Impedance 75 ohms Jacket Material PVC-LS Number of Conductors 1 Shielding Yes Solid or Stranded Solid
Operating Temperature (T-T) 0-75°C
Cable Length 1000' Color Black Insulation Material FEP Package Type Reel
Length 1000'
Limited Warranty 10-Year
Country of Origin US Indoor/Outdoor Indoor
