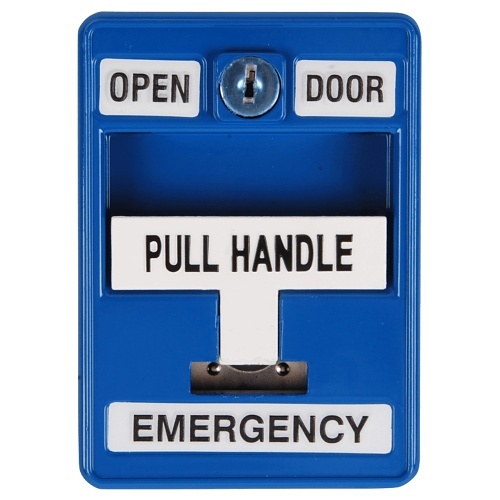

Dortronics 6510/BL-S35 6500 Series Emergency Pull Station, Pull Station with SPDT (Form C) Switches, Blue Enamel Finish
6510/BL-S35|0L-6510BLS35
Dortronics 6510/BL-S35 6500 Series Emergency Pull Station, Pull Station with SPDT (Form C) Switches, Blue Enamel Finish
6510/BL-S35|0L-6510BLS35
Dortronics
Dortronics 6510/BL-S35 6500 Series Emergency Pull Station, Pull Station with SPDT (Form C) Switches, Blue Enamel Finish
6510/BL-S35Â |Â 0L-6510BLS35
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Easily Recognized and Operated
The 6510 Series of Emergency Pull Stations provide conspicuous signalling or release in case of emergency. These easy to operate stations require a single pull action to actuate. Dual SPDT switches allow connection to an Alarm or Access control system while simultaneously breaking or making power to a lock or siren using the second set of contacts.
Multiple Applications
Ideal for use in Hospitals, Schools, Industrial facilities and Office buildings.
Use for Emergency Exit door release with Badge in/out Access control systems, or door interlock and Mantrap type systems.
The Wide variety of colors and text make these units suitable for signalling an alarm panel of any Natural Disaster, Hazmat incident, or Medical Emergency.
Deters unauthorized access, i.e. smoking in stairwells, and nuisance access to fire escapes.
Customized Labels
Custom labels may be ordered by contacting the factory. These would be special order and lead times will vary accordingly.
Easy Mounting & Wiring
Two mounting screws are all that's needed to surface mount the 6510.
The unit mounts to a standard single gang electrical box. Matching color back boxes are also available for surface mounting. Back boxes have conduit knock outs for easy wiring access.
Wiring is accomplished by utilizing the screw terminals on the back of the unit to connect to any system or device. All units are pre-wired, simply cut the wire not needed for a Normally Open or Normally closed contact
Key Reset
Following actuation the pull station is reset by opening the front cover (with the key provided) and installing a new acrylic break rod. Close and relock the cover and the 6510 is restored and ready for the next emergency
The 6510 Series of Emergency Pull Stations provide conspicuous signalling or release in case of emergency. These easy to operate stations require a single pull action to actuate. Dual SPDT switches allow connection to an Alarm or Access control system while simultaneously breaking or making power to a lock or siren using the second set of contacts.
Multiple Applications
Ideal for use in Hospitals, Schools, Industrial facilities and Office buildings.
Use for Emergency Exit door release with Badge in/out Access control systems, or door interlock and Mantrap type systems.
The Wide variety of colors and text make these units suitable for signalling an alarm panel of any Natural Disaster, Hazmat incident, or Medical Emergency.
Deters unauthorized access, i.e. smoking in stairwells, and nuisance access to fire escapes.
Customized Labels
Custom labels may be ordered by contacting the factory. These would be special order and lead times will vary accordingly.
Easy Mounting & Wiring
Two mounting screws are all that's needed to surface mount the 6510.
The unit mounts to a standard single gang electrical box. Matching color back boxes are also available for surface mounting. Back boxes have conduit knock outs for easy wiring access.
Wiring is accomplished by utilizing the screw terminals on the back of the unit to connect to any system or device. All units are pre-wired, simply cut the wire not needed for a Normally Open or Normally closed contact
Key Reset
Following actuation the pull station is reset by opening the front cover (with the key provided) and installing a new acrylic break rod. Close and relock the cover and the 6510 is restored and ready for the next emergency
Main Features
- Highly Visible
- Reliable Operation
- Key Reset
- Deter Unauthorized
- Access
- Medical
- Emergencies
- Natural Disasters
General Information
Name: Dortronics 6510/BL-S35 6500 Series Emergency Pull Station, Pull Station with SPDT (Form C) Switches, Blue Enamel Finish
Category: Dortronics, Access Control, Egress Devices, Emergency Pull Stations
UPC Code: 840067690918
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number 0L-6510BLS35 Brand Name Dortronics Manufacturer Sag Harbor Industries, Inc. Manufacturer Part Number 6510/BL-S35 Product Model 6510/BL-S35 Product Name 6510 Pull Station Product Series 6510 Product Type Pull Station Â
-
Gang Type Single Gang Pull Station Type Single Action Â
-
Application/Usage Access Control System, Alarm, Door, Emergency, Hospital, Indoor/Outdoor, Industrial, Office, School Color Blue Depth 1" Material Metal Product Color Blue Width 2.6" Â
-
Print/Message Pull Handle Â
-
Features Key Reset, Surface Mount Package Contents - 6510 Pull Station
- Key for Re-set
- 1 x Plexiglass Break Rod
- 2 x Mounting Screws
Â
