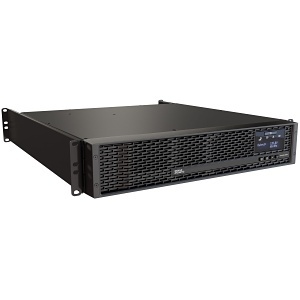

Middle Atlantic UPX-RLNK-1500R-8 NEXSYS 15A 8-Outlet Individually Controlled UPS Backup Power System with Pre-Installed RackLink Network Card, 1500VA
UPX-RLNK-1500R-8|NO-UPXRLNK15
Middle Atlantic UPX-RLNK-1500R-8 NEXSYS 15A 8-Outlet Individually Controlled UPS Backup Power System with Pre-Installed RackLink Network Card, 1500VA
UPX-RLNK-1500R-8|NO-UPXRLNK15
Middle Atlantic by Legrand
Middle Atlantic UPX-RLNK-1500R-8 NEXSYS 15A 8-Outlet Individually Controlled UPS Backup Power System with Pre-Installed RackLink Network Card, 1500VA
UPX-RLNK-1500R-8Â |Â NO-UPXRLNK15
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
NEXSYS is built on a promise that we've kept for over two decades - more than half the life of the company - that our power products are designed, engineered, and built for AV. It's one thing to say it, it's another thing to prove it. And our NEXSYS Line Interactive UPSs prove it, we promise. They are built with premium components to keep your AV systems running as smoothly as you'd expect.
- 1000VA
- 15 Amp
- 8 Outlets with Individual Control
- An Out-of-Box(y) Experience. Everything is assembled and connected right from the factory saving you time during your installations
- Rack ears are pre-installed with the "4-Post" mounting brackets ready to be rack mounted even if you have a 3rd pair of rackrail
- The battery is already connected so just plug it in
- Customization is a Breeze. The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications if you don't like our default settings - we won't be offended
- "NEXSYS, alert me when...". Set reminders or notifications for things like battery replacement, etc. via email or on the UPS
- The IEC Input allows for better cable management of the power cord if shorter or longer cords are required
- All UPSs include a 6' (1.8m) IEC power cord
- Name, address, and date of birth, please? Easily locate the IP, MAC address and device name via the front LCD screen. You can even see the battery installation date.
- Pure Power. All NEXSYS UPSs have a Pure Sine Wave output and AVR (automatic voltage regulation) providing the cleanest power to your connected equipment, especially the most sensitive equipment
- Keep your power squeaky clean. Easily set specific thresholds to switch the unit to battery if the power quality isn't up to your standards
- Swap it like it's hot. Hot swappable battery from the front access panel for easy service without disrupting the system
- RackLinkâ„¢ Remote Management Built-In. The NEXSYS UPS is RackLink enabled out of the box and discoverable on the RackLink Discovery Tool on PC, Apple or Android devices.
- Included RS232 port for control
- 2 x dry contact ports for alerts
- 1 x contact is defined to alert users of a battery switch over when the UPS loses utility power or hits a set threshold
- 1 x contact is defined to alert users when the battery level is low based on usage with customizable thresholds
- Energy Star Certified
Main Features
- 8 Outlets
- Everything is assembled and connected right from the factory saving you time during your installations
- The NEXSYS Power Management software on your PC allows you to customize and configure various settings and notifications
- Set reminders or notifications for things like battery replacement, etc. via email or on the UPS
- Hot swappable battery from the front access panel for easy service without disrupting the system
- The IEC Input allows for better cable management of the power cord if shorter or longer cords are required
- The NEXSYS UPSs are RackLink compatible for remote monitoring and management and some are compatible right out of the box!
- Front panel LCD screen shows UPS Device Name, Model Number, Serial Number, Replacement Battery Number, Battery Install Date, Firmware Version and where applicable, RackLink Network card IP address and MAC address
General Information
Name: Middle Atlantic UPX-RLNK-1500R-8 NEXSYS 15A 8-Outlet Individually Controlled UPS Backup Power System with Pre-Installed RackLink Network Card, 1500VA
Category: Middle Atlantic by Legrand, Batteries & Power Supplies, Power Management, UPS
UPC Code: 656747395642
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number NO-UPXRLNK15 Brand Name Middle Atlantic by Legrand Manufacturer Legrand Group Manufacturer Part Number UPX-RLNK-1500R-8 Product Line NEXSYS Product Name NEXSYS 1500VA Rack-mountable UPS Product Series UPX Product Type Line-interactive UPS Weight (Approximate) (g) 20000 Â
-
AVR Yes Hot Swappable Yes Load Capacity (VA) 1500 VA Output Voltage 110V AC, 120V AC, 127V AC Output Voltage (V AC) 110, 120, 127 Receptacle Detail 8 x NEMA 5-15R Receptacle Type NEMA 5-15R Â
-
DC System Voltage 36 V DC Â
-
Output Voltage (V) 110, 120, 127 Â
-
Maximum Operating Temperature 104°F (40°C) Maximum Operating Temperature (°F) 104 Â
-
Serial Port Yes Â
-
Application/Usage Audio/Video Equipment Color Black Color Family Black Depth 16" Depth (mm) 406 Form Factor Rack Mount Height 3.5" Height (mm) 88 Product Color Black Rack Height 2U Weight (Approximate) 44.09 lb Width 19" Width (mm) 483 Â
-
Input Voltage 120V AC Input Voltage (V AC) 120 Plug/Connector Type NEMA 5-15P Waveform Type Pure Sine Wave Â
-
Load Capacity (VA) (W) 1500.000 Load Capacity (W) 1500.000 Â
-
Additional Warranty Information 2 Years Battery Limited Warranty 3 Year Â
-
Energy Star Yes Environmental Certification REACH, RoHS Environmentally Friendly Yes Package Contents - NEXSYS 1500VA Rack-mountable UPS
- 6' (1.8m) IEC Power Cord
- Network Card
TAA Compliant No Â
