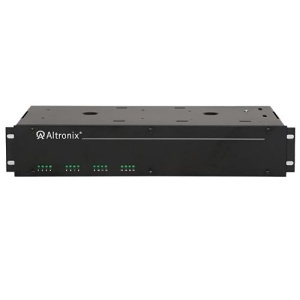

Altronix R615DC416UL CCTV Power Supply, 16 PTC Class Outputs, 6-15VDC at 4A, 115VAC, BC100 Enclosure
R615DC416UL|AX-R615416UL
Altronix R615DC416UL CCTV Power Supply, 16 PTC Class Outputs, 6-15VDC at 4A, 115VAC, BC100 Enclosure
R615DC416UL|AX-R615416UL
Altronix
Altronix R615DC416UL CCTV Power Supply, 16 PTC Class Outputs, 6-15VDC at 4A, 115VAC, BC100 Enclosure
R615DC416ULÂ |Â AX-R615416UL
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
These Altronix DC Rack Mount CCTV Power Supplies provide 6-15VDC distributed via sixteen (16) fuse or Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.
Main Features
- Removable terminal blocks with locking screw flange.
- 3-wire grounded line cord.
- Illuminated master power disconnect circuit breaker with manual reset.
- UL and cUL listed, CE approved.
General Information
Name: Altronix R615DC416UL CCTV Power Supply, 16 PTC Class Outputs, 6-15VDC at 4A, 115VAC, BC100 Enclosure
Category: Altronix, Video Surveillance, Batteries & Power Supplies, Power Products, Power Supplies & Boards, Power Supplies, Power Supplies
UPC Code: 782239939718
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number AX-R615416UL Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number R615DC416UL NDAA Compliant Yes Product Model R615DC416UL Product Name R615DC416UL Proprietary Power Supply Product Type Proprietary Power Supply Weight (Approximate) (g) 5624.545 Â
-
Output Voltage 15V DC, 6V DC Â
-
Output Voltage (V DC) 24 Â
-
Output Voltage (V) 24 Â
-
Depth 8.5" Depth (mm) 215.9 Height 3.3" Height (mm) 82.55 Weight (Approximate) 12.40 lb Width 19.1" Width (mm) 485.775 Â
-
Input Voltage 110V AC Input Voltage (V AC) 110 Output Current 4A Output Current (A) 4 Â
-
Limited Warranty Lifetime Â
-
Compatibility HeatersCCTV CamerasVideo Accessories Environmental Certification RoHS Environmentally Friendly Yes Â
