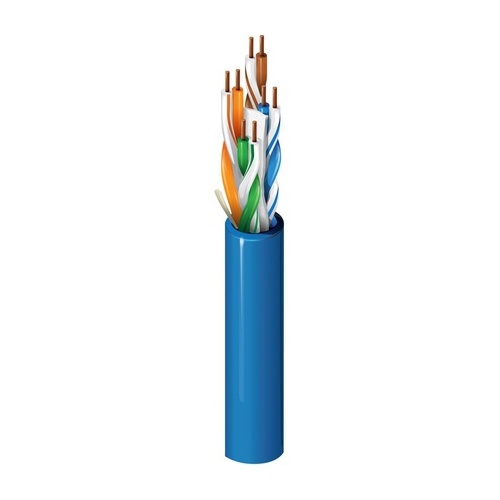

Belden 2413 D15A1000 CAT6 Plus Plenum Cable, 23/4 Solid BC, Unshielded, UTP, CMP, FT6, 1000' (304.8m), Reel-in-Box, Blue
2413 D15A1000|7B-2413D15A1
Color: Blue
Shielding: No
Number of Conductors: 8
Belden 2413 D15A1000 CAT6 Plus Plenum Cable, 23/4 Solid BC, Unshielded, UTP, CMP, FT6, 1000' (304.8m), Reel-in-Box, Blue
2413 D15A1000|7B-2413D15A1
Color: Blue
Shielding: No
Number of Conductors: 8
Belden
Belden 2413 D15A1000 CAT6 Plus Plenum Cable, 23/4 Solid BC, Unshielded, UTP, CMP, FT6, 1000' (304.8m), Reel-in-Box, Blue
2413 D15A1000Â |Â 7B-2413D15A1
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Category 6+ Enhanced Premise Horizontal Cable (350MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Plenum-CMP, Flamarrest® PVC-LS Jacket
Main Features
- Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE , PoE , PoE Solid Stranding Conductor Material: Bare Copper
- Number of Pairs: 4
- Size 23 AWG
- Stranding: Solid
- Material: BC - Bare Copper (High Conductivity)
- Insulation Material: PO FEP - Polyolefin Fluorinated Ethylene Propylene
- Plenum
- Experience a simpler way to connect devices with the entire business network
- Features Category 6+ cable type for optimal performance and better dependability
- PoE++ feature for your convenience and ease of usage
General Information
Name: Belden 2413 D15A1000 CAT6 Plus Plenum Cable, 23/4 Solid BC, Unshielded, UTP, CMP, FT6, 1000' (304.8m), Reel-in-Box, Blue
Category: Belden, Wire & Cable, Network Cables, Category 6 Network Cables
UPC Code: 612825061618
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
-
ADI Part Number 7B-2413D15A1 Brand Name Belden Manufacturer Belden CDT, Inc Manufacturer Part Number 2413 D15A1000 Product Name 2413 - Category 6+ Enhanced Cable, 4 Pair, U/UTP, CMP Product Type Network Cable Â
-
American Wire Gauge 23AWG Cable Listing CMP Cable Rating Plenum Cable Type Category 6+ Conductor Count 4 Conductor Material Bare Copper Device Supported Network Device Jacket Material LS PVC Number of Conductors 8 Number of Pairs 4 Shielding No Solid or Stranded Solid Â
-
Data Transfer Rate 1 Gbit/s Â
-
Cable Length 1000' Color Blue Insulation Material FEP Material Bare Copper, PVC Package Type Reel-in-a-Box Â
-
Environmental Certification China RoHS 2, REACH, RoHS 2, WEEE Environmentally Friendly Yes Features Attenuation to Crosstalk Ratio (ACR), Bendable, Equal Level Far End Crosstalk (ELFEXT), Minimized Near-End Crosstalk (NEXT), PoE, PoE+, PoE++, Power Sum Attenuation to Crosstalk Ratio (PSACR), Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF), Power-sum Near End Crosstalk (PSNEXT), Stranded Â
