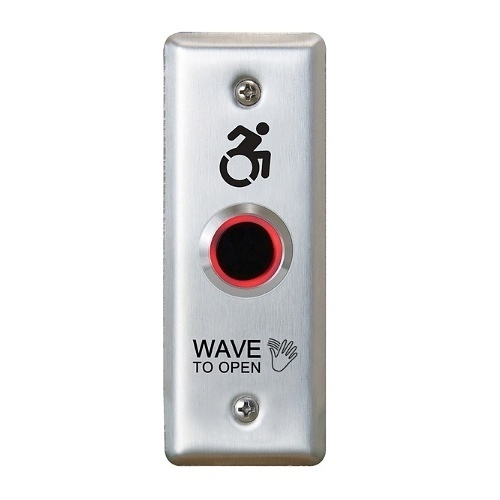

Camden CM-221/A42N ValueWave 12/24V DC Powered Touchless Switch Relay, Narrow, Stainless-Steel Faceplate, with Light Ring, Wave to Open Graphics
Camden CM-221/A42N ValueWave 12/24V DC Powered Touchless Switch Relay, Narrow, Stainless-Steel Faceplate, with Light Ring, Wave to Open Graphics
Camden CM-221/A42N ValueWave 12/24V DC Powered Touchless Switch Relay, Narrow, Stainless-Steel Faceplate, with Light Ring, Wave to Open Graphics
CM-221/A42NÂ |Â CM-221A42N
Please sign in to view pricing and availability and to add to cart.
Product Overview
Camden ValueWave(tm) 12/24 VDC touchless switches with 1 relay are IP 65 rated for indoor or outdoor use, and are ideal for use in automatic door or access control systems. These no-touch switches are designed for easy installation and trouble-free service in high traffic applications, and are available in a range of models, with narrow, single and double gang stainless steel faceplates and a selection of faceplate graphics.
ValueWave(tm) hands free switches with narrow (jamb width) faceplate is both water resistant and offers a built-in light ring standard.
Main Features
- Adjustable sensor range 2" to 8" (5 to 20 cm)
- Adjustable time delay (0.5 to 20 sec.) and toggle operation
- Red/green light ring with switch or remote activation
- Weather/water resistant, IP 65 rated
- Single, narrow and double gang stainless steel faceplates
- Selection of faceplate laser etched graphics, resistant to cleaners
- (1) Form 'C' contact, 1A @ 30 VDC
General Information
Specifications
-
ADI Part Number CM-221A42N Brand Name Camden Door Controls Manufacturer Camden Door Controls Manufacturer Part Number CM-221/A42N Product Line ValueWave Product Model CM-221/A42N Product Name ValueWave CM-221/A42N Touch-free Button Product Series CM-221 Product Type Touch-free Button Â
-
Gang Type Narrow Maximum Proximity Range 8" Maximum Proximity Range (mm) 203.2 Maximum Timer Duration 20 Second Maximum Timer Duration (Second) 20 Minimum Proximity Range 2" Minimum Proximity Range (mm) 50.8 Minimum Timer Duration 500 ms Minimum Timer Duration (Second) 0.5 Â
-
Maximum Operating Temperature 122°F (50°C) Maximum Operating Temperature (°F) 122 Minimum Operating Temperature 14°F (-10°C) Minimum Operating Temperature (°F) 14 Â
-
Application/Usage Access Control System, Door, Indoor/Outdoor, Traffic Color Silver Material Stainless Steel Â
-
Input Voltage 12V DC, 24V DC, 30V DC Input Voltage (V DC) 12, 24, 30 Â
-
Print/Message Wave To Open Â
-
ADA Compliant Yes Environmental Certification RoHS Environmentally Friendly Yes Features Time Delay, Water Resistant, Weather Proof Â
