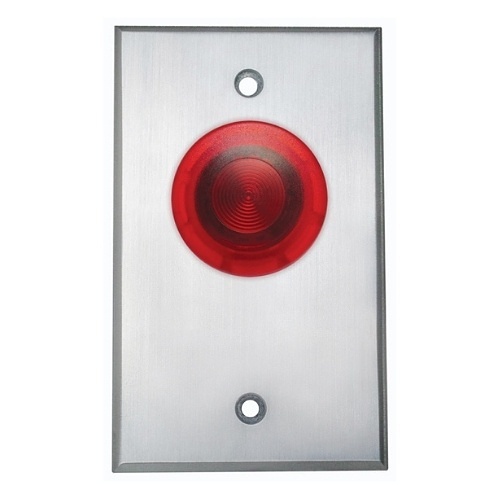

Camden CM-3050R Illuminated Mushroom Push/Pull, N/O and N/C, Maintained, Red Button
CM-3050R|CM-3050R
Camden CM-3050R Illuminated Mushroom Push/Pull, N/O and N/C, Maintained, Red Button
CM-3050R|CM-3050R
Camden Door Controls
Camden CM-3050R Illuminated Mushroom Push/Pull, N/O and N/C, Maintained, Red Button
CM-3050RÂ |Â CM-3050R
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
CM-3000 Series mushroom push buttons are heavy duty push-buttons designed for industrial and commercial applications. Buttons are 1-5/8" (40mm) in diameter and are available in red or green. Bright LED illumination with long service life.
Main Features
- HIGH VISIBILITY LED OPERATION
- RED OR GREEN ILLUMINATED BUTTONS
- MOUNTED ON HEAVY 1/4" THICK ALUMINUM PLATE
- SINGLE GANG OR 1 3/4" WIDTH
- 12V OR 24V DC OPERATION
- INDOOR /OUTDOOR APPLICATIONS
- DOOR FRAME, WALL , OR PEDESTAL MOUNTING
- LARGE ENGRAVED SYMBOLS OR WORDS
- SPRING RETURN OR PUSH/PULL OPERATION
- STACKABLE CONTACTS CAN CONTROL 6 DISTINCT FUNCTIONS
General Information
Name: Camden CM-3050R Illuminated Mushroom Push/Pull, N/O and N/C, Maintained, Red Button
Category: Camden Door Controls, Access Control, Egress Devices, Door Release Buttons
UPC Code: 670454164087
Country of Origin: Canada. Country of origin is subject to change.
Specifications
-
ADI Part Number CM-3050R Brand Name Camden Door Controls Manufacturer Camden Door Controls Manufacturer Part Number CM-3050R Product Model CM-3050R Product Name Push/Pull, N/O & N/C, Maintained Product Series CM-3000 Product Type Push/Pull Button Weight (Approximate) (g) 294.835 Â
-
Button Size 1.57" Button Size (mm) 40 Gang Type Single Gang Â
-
Application/Usage Door, Indoor/Outdoor Color Silver Color Family Red Depth 4" Depth (mm) 101.6 Height 4.8" Height (mm) 120.65 Material Cast Aluminum Product Color Red Product Material Cast Aluminum Weight (Approximate) 10.40 oz Width 3" Width (mm) 76.2 Â
-
Input Voltage 24V DC Input Voltage (V DC) 24 Â
-
Finishing Brushed Aluminum Â
-
Limited Warranty 3 Year Â
-
ADA Compliant Yes Compatibility Industrial and Commercial Applications Features Flush Mount, Momentary On/Off Mode Â
