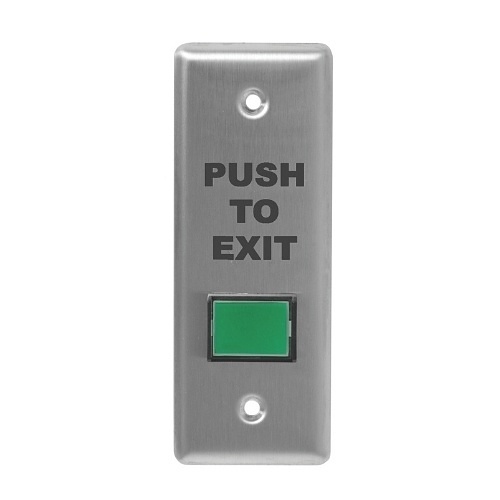

Camden CM-310EE LED Illuminated Exit Switch, Narrow, Stainless-Steel Faceplate, Integrated 30 Second Timer
Camden CM-310EE LED Illuminated Exit Switch, Narrow, Stainless-Steel Faceplate, Integrated 30 Second Timer
Camden CM-310EE LED Illuminated Exit Switch, Narrow, Stainless-Steel Faceplate, Integrated 30 Second Timer
CM-310EEÂ |Â CM-310EE
Please sign in to view pricing and availability and to add to cart.
Product Overview
CM-300 (single gang) and CM-310 (narrow) series LED illuminated exit switches are economical illuminated exit controls. Buttons are 5/8" x 7/8" and are available in red or green. They are supplied with a stainless steel faceplate in single gang or jamb (narrow) widths.
The CM-310EE model is supplied with a narrow style faceplate and an integrated 30 second timer with double break circuitry. As required by code, the double break circuit design ensures power to the mag lock will be interrupted by pressing the button should the timer or request to exit sensor malfunction.
Main Features
- Single gang or narrow stainless steel face plates
- 1/2" x 3/4" illuminated buttons
- Available in Red and Green
- 12/ 24V with LED bulb
- 3 year warranty with '2 for 1' replacement
General Information
Specifications
-
ADI Part Number CM-310EE Brand Name Camden Door Controls Manufacturer Camden Door Controls Manufacturer Part Number CM-310EE Product Model CM-310EE Product Name Rectangular LED Illuminated Switch Product Series CM-310 Product Type Push Button Weight (Approximate) (g) 68.039 Â
-
Gang Type Narrow Â
-
Application/Usage Door Color Silver Depth 2.5" Depth (mm) 63.5 Height 4.8" Height (mm) 120.65 Material Stainless Steel Product Color Green Product Material Stainless Steel Weight (Approximate) 2.40 oz Width 3.3" Width (mm) 82.55 Â
-
Input Voltage 12V DC, 24V DC Input Voltage (V DC) 12, 24 Â
-
Print/Message Push To Exit Â
-
Limited Warranty 3 Year Â
-
Features Built-in Timer, Flush Mount, Momentary On/Off Mode Â
