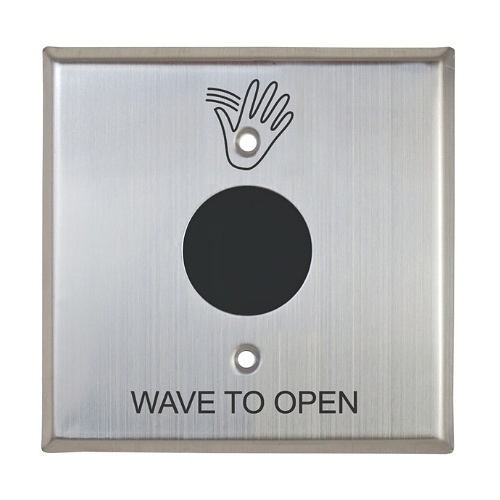

Camden CM-336/41SWL1 SureWave Battery Powered, 915Mhz. Wireless Touchless Switch, Double Gang, Stainless-Steel Faceplate, Hand Icon and Wave to Open Graphics, with Lithium Batteries
CM-336/41SWL1|CM-33641SWL1
Camden CM-336/41SWL1 SureWave Battery Powered, 915Mhz. Wireless Touchless Switch, Double Gang, Stainless-Steel Faceplate, Hand Icon and Wave to Open Graphics, with Lithium Batteries
CM-336/41SWL1|CM-33641SWL1
Camden Door Controls
Camden CM-336/41SWL1 SureWave Battery Powered, 915Mhz. Wireless Touchless Switch, Double Gang, Stainless-Steel Faceplate, Hand Icon and Wave to Open Graphics, with Lithium Batteries
CM-336/41SWL1 | CM-33641SWL1
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
CM-336 Series are 2nd generation hands-free wireless switches provide superior door activation in new and retrofit access control and automatic door applications. Camden CM-RX90 Wireless Receiver required. Lithium batteries recommended for environments below 0°C (32°F).
Main Features
- Wired, wireless and hybrid (wirless/wired) models
- Indoor/outdoor use. -4ºF to +153ºF (-20ºC to +85ºC) operating temp. Gasket included in package
- CM-333 Series: Hybrid battery powered models offer 2 year battery life using standard'AA' alkaline batteries
- CM-336 Series: battery powered wireless models offer industry-leading 4 year battery life using standard 'AA' alkaline batteries
- Line powered models offer 12/24V AC/DC operation
- 1 and 2 relay wired models, SPDT, Form 'C'
- Narrow (jamb), single and and double gang faceplates
- Polycarbonate (black) and stainless steel faceplates
- Advanced active infra-red technology with fast response
- Heavy duty 3 or 5 Amp rated relay
General Information
Name: Camden CM-336/41SWL1 SureWave Battery Powered, 915Mhz. Wireless Touchless Switch, Double Gang, Stainless-Steel Faceplate, Hand Icon and Wave to Open Graphics, with Lithium Batteries
Category: Camden Door Controls, Access Control, Access Control, Egress Devices, Request to Exit Devices, Touchless Access Control
UPC Code: 670454215062
Country of Origin: Canada. Country of origin is subject to change.
Specifications
-
ADI Part Number CM-33641SWL1 Brand Name Camden Door Controls Manufacturer Camden Door Controls Manufacturer Part Number CM-33641SWL1 Product Line SureWave Product Model CM-336/41SWL1 Product Name SureWave CM-336/41SWL1 Touch-free Button Product Series CM-336 Product Type Wireless
-
Gang Type Double Gang Maximum Timer Duration 30-Second Minimum Timer Duration 3 Second
-
Maximum Operating Temperature 153°F (67.2°C) Minimum Operating Temperature -4°F (-20°C)
-
Application/Usage Indoor/Outdoor Color Black Material PC, Stainless Steel
-
Input Voltage 12V DC, 24V DC, 30V DC
-
Finishing Stainless Steel Print/Message Wave To Open
-
ADA Compliant Yes Environmental Certification RoHS Environmentally Friendly Yes Features Momentary On/Off Mode, Single Pole, Surface Mount Package Contents - SureWave CM-336/41SWL1 Touch-free Button
- Gasket
