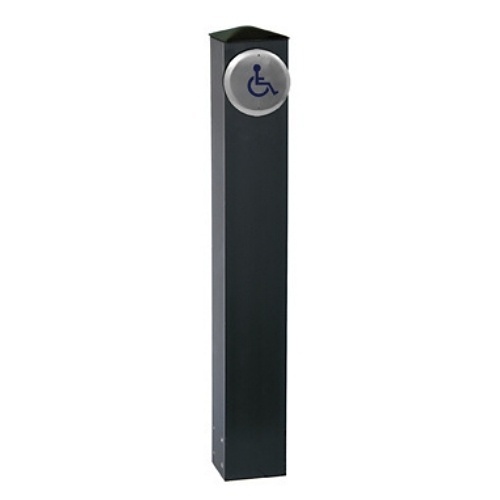

Camden CM-42-BSU-CLR 42" Tall with 36" Switch Height, Single Gang Prep, 6" 6" Clear Aluminum
Camden CM-42-BSU-CLR 42" Tall with 36" Switch Height, Single Gang Prep, 6" 6" Clear Aluminum
Camden CM-42-BSU-CLR 42" Tall with 36" Switch Height, Single Gang Prep, 6" 6" Clear Aluminum
CM-42-BSU-CLRÂ |Â CM-42BSUCLR
Please sign in to view pricing and availability and to add to cart.
Product Overview
DESCRIPTION
Camden Mounting Posts are available in 42" (107cm), with 36" (91cm) switch height and 48" (122cm), with 42" (107cm) switch height. There is a choice of extruded aluminum or stainless steel. They are available in clear aluminum and dark bronze anodized finishes and mill (suitable for painting). Posts are supplied with a flame and impact resistant ABS post cap, steel mounting base, and stainless steel mounting hardware. The post cap is designed for easy installation of Lazerpoint RFâ„¢ 915Mhz. wireless transmitter and battery pack.
An optional in-ground mounting base has re-bar welded to the base and is supplied CM-42-BSU-BRZ instead of the standard mounting base.
APPLICATION
Camden mounting posts offer a superior method of mounting a switch, keypad, card reader, or other door activation device, when mounting adjacent to the door is difficult or unsuitable. The various preps allow for use with virtually any switch or door activation device. Mounting posts are available in stainless steel or aluminum. Aluminum posts offer the option for mill, brushed aluminum or dark bronze anodized finishes. The mounting post has provisions to be hard-wired, or for wireless operation utilizing Camden radio controls
ARCHITECTS /ENGINEERS SPECIFICATIONS
The push plate switch mounting posts (bollards) used throughout the complex shall be Camden Door Controls CM-42 or CM-48 Series. They shall be 6" x 6" (152mm x 152mm) with 1/8" (3mm) wall thickness. The posts shall be 42" (107cm) or 48" (122cm) in height and accommodate any standard push plate switch. The post shall include a molded ABS flame and impact resistant cap with provision for 'snap in' wireless radio transmitter. Stainless steel posts shall be brush finished. Aluminum posts shall be mill, brushed aluminum or bronze aluminum finish. The mounting base shall be 3/16" (4.76mm) steel, secured to existing concrete pad with (4) 1/2" (12.7mm) anchor fasteners. Mounting posts are to be provided with in-ground concrete mounting base, where new concrete pad is poured.
Main Features
- Choice Of Aluminum Or Stainless Steel Construction
- Models For 36" Or 42" Switch Height
- Clear Aluminum And Dark Bronze Anodized, Or Mill Finish (Suitable For Painting
- Available With Or Without Single Gang Switch Cut-Out
- Cap Design Features Peaked 'Roof' To Shed Water And Easy Removal With Allen Key Wrench
- Easy Installation And Service Of Lazerpointâ„¢ Rf Wireless Switch Transmitter And Batteries
General Information
Specifications
-
ADI Part Number CM-42BSUCLR Brand Name Camden Door Controls Manufacturer Camden Door Controls Manufacturer Part Number CM-42-BSU-CLR Product Model CM-42-BSU-CLR Product Name 42" Tall, (36" Switch Height) Single Gang Prep, 6" x 6" Clear Aluminum Product Series CM-42 Product Type Mounting Post Â
-
Device Supported Card Reader, Door Activation Device, Keypad, Switch Â
-
Application/Usage Concrete Color Black Height 7.5" Material Aluminum Product Material Aluminum Weight (Approximate) 17.80 lb Width 7.5" Â
-
Finishing Clear Length 45" Â
-
Limited Warranty 3 Year Â
-
Features Heavy Duty, Vandal Resistant, Weather Resistant Package Contents - 42" Tall, (36" Switch Height) Single gang prep, 6" x 6" clear aluminum
- Flame and Impact Resistant ABS Post Cap
- Steel Mounting Base
- Stainless Steel Mounting Hardware
