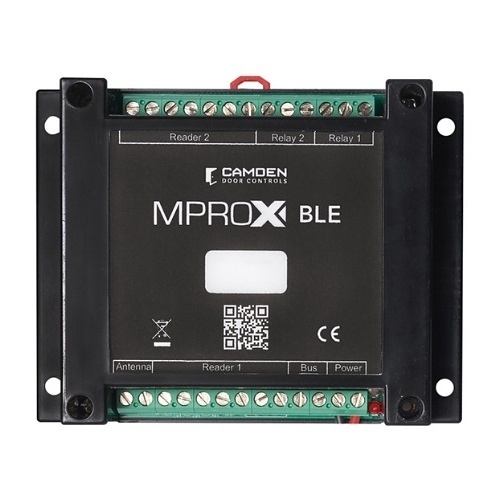

Camden CV-603 2-Door MProx-BLE Bluetooth Access Controller with 433 MHz Receiver

CV-603 | CM-CV603

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

CV-603 Series is an app-based wireless Bluetooth® managed access control system designed to provide maximum flexibility in small door and gate applications and comes ready to support each system user with the card, security FOB, or smartphone credential they want. The intuitive programming app is Apple® and Android® protocol, with easy to use system set-up, user administration, downloadable audit trail and data back-up. Now featuring optional Virtual Remote License Keys to support smartphone credentials.

The CV-603 controller provides control for two doors, including inputs for readers, door position switch and REX device, and (2) outputs for electrified locking or alarm signal devices. A built-in 433Mhz. receiver supports two button wireless key fobs, providing an ideal solution for parking garage and gate control applications.

Main Features

  • Progra mmed via BLE Phone App
  • 2,000 User Capacity
  • Built-in Bluetooth mobile credentials option
  • Wiegand Reader protocol - 26, 30, 34 and 37 bits
  • Common Alarm Relay - Trigger remote devices
  • Anti-pass back - Higher level of security
  • Sensor Input - For door position switch or vehicle loop detector
  • Form C relays - Fail-safe or Fail-secure electric locks
  • Built-in 433 MHz key fob receiver - To be used with CX-TXM-2 two button transmitters: Encrypted rolling code and protected AES128 transmission of transmitters
  • Operator Security Levels - 5, configurable

General Information

Name: Camden CV-603 2-Door MProx-BLE Bluetooth Access Controller with 433 MHz Receiver
Category: Camden Door Controls, Access Control, Control Panels, Control Panels
UPC Code: 670454209146
Country of Origin: France. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
