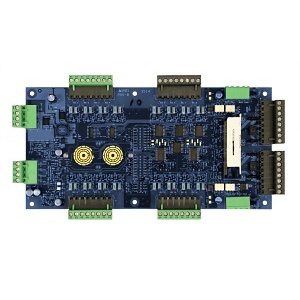

RZI16-2Â |Â ED-RZI162
Please sign in to view pricing and availability and to add to cart.
Product Overview
The RZI16-2 Addressable Remote Zone Interface Module is an addressable device that provides connections for sixteen Class B Initiating Device Circuits and two Class B Supervised Output Circuits. The inputs and outputs can be configured individually for several device types. It requires 18 consecutive addresses on the Signaling Line Circuit (SLC). Addresses are assigned electronically. There are no address switches to set. The RZI16-2 incorporates two 8-segment DIP switches that are used to select the Alarm or Supervisory default device type for each of the 16 IDC circuits. The module also includes one 4-segment DIP switch used to select the default Relay or NAC output device type. Device types other than the default are accomplished through programming.
Main Features
- Addressable device with 16 Class B IDCs
- Two Class B Supervised Output Circuits
- Configurable inputs and outputs for various device types
- Electronic address assignment, no switches needed
- 8-segment DIP switches for Alarm/Supervisory selection
- 4-segment DIP switch for Relay/NAC output selection
- Requires 18 consecutive addresses on SLC
- Programming allows non-default device types
General Information
Specifications
-
ADI Part Number ED-RZI162 Brand Name Edwards Signaling Manufacturer Carrier Manufacturer Part Number RZI16-2 Product Name Remote Zone Interface Product Type Remote Zone Interface Â
-
Form Factor Cabinet Mount Â
-
Additional Information United States. Country of origin is subject to change.
