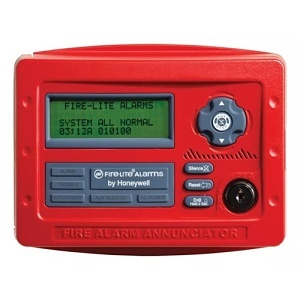

Image of FL-ANN80
Shop all Fire-Lite Alarms by Honeywell

Fire-Lite ANN-80 80-Character Serial LCD Annunciator, Compact, Backlit, Red

ANN-80|FL-ANN80
Shop all Fire-Lite Alarms by Honeywell

Fire-Lite ANN-80 80-Character Serial LCD Annunciator, Compact, Backlit, Red

ANN-80|FL-ANN80

Sign In for Dealer Pricing

Become an ADI Customer
Image of FL-ANN80
Fire-Lite Alarms by Honeywell

Fire-Lite ANN-80 80-Character Serial LCD Annunciator, Compact, Backlit, Red

ANN-80 | FL-ANN80

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The ANN-80 annunciator is a compact, backlit, 80-character LCD fire annunciator that mimics the Fire Alarm Control Panel (FACP) display. It provides system status indicators for AC Power, Alarm, Trouble, Supervisory, and Alarm Silenced conditions. The ANN-80 and the FACP communicate over a two-wire serial interface employing the ANN-BUS communication format. Connected devices are powered, via two additional wires, by either the host FACP or a remote UL-listed, filtered power supply.

Main Features

  • Backlit 80-character LCD (20 characters x 4 lines) mimics all display information from the host panel
  • Control switches for system acknowledge, signal silence, drill, and reset
  • Keyswitch enables/disables control switches, mechanically locks annunciator enclosure, and can be enabled or disabled at the FACP
  • Enclosure supervised for tamper
  • Local sounder can be enabled or disabled at the FACP
  • Displays device type identifiers, individual point alarm, trouble, supervisory, zone, and custom alpha labels
  • Surface mount directly to wall or to single, double, or 4"square electrical box
  • Semi-flush mount to single, double, or 4" square electrical box
  • Can be remotely located up to 6,000 feet (1,800 m) from the panel
  • Backlight turns off during AC loss to conserve battery power but will turn back on if an alarm condition occurs.

General Information

Name: Fire-Lite ANN-80 80-Character Serial LCD Annunciator, Compact, Backlit, Red
Category: Fire-Lite Alarms by Honeywell, Fire, Fire Control Panels, Annunciators
UPC Code: 783008108137
Country of Origin: United States. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
Manufacturer Brochure
Certification / Declaration
