Image of FP-EAP650
TP-Link

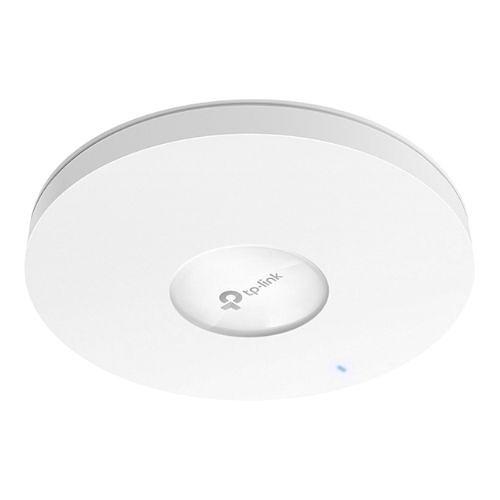

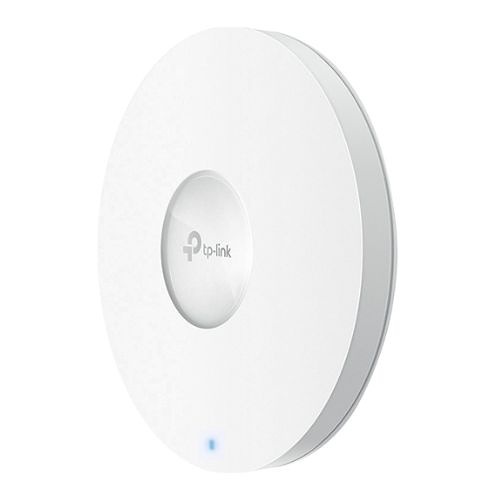

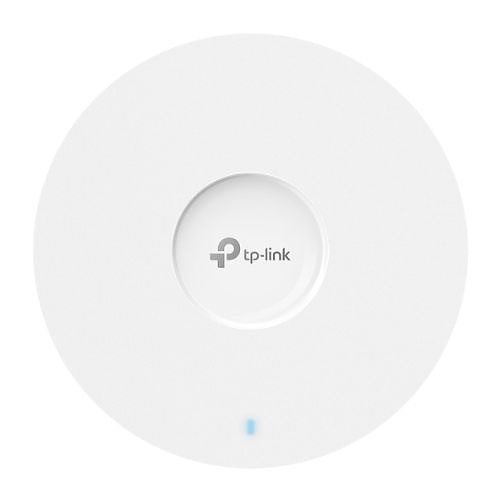

TP-Link EAP650 AX3000 Ceiling Mount Wi-Fi Access Point

EAP650|FP-EAP650
TP-Link

TP-Link EAP650 AX3000 Ceiling Mount Wi-Fi Access Point

EAP650|FP-EAP650

Sign In for Dealer Pricing

Become an ADI Customer
Image of FP-EAP650
TP-Link

TP-Link EAP650 AX3000 Ceiling Mount Wi-Fi Access Point

EAP650 | FP-EAP650

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The New Slimline Business WiFi 6

AX3000 Ceiling Mount WiFi 6 Access Point

AX3000 WiFi 6 Speed

2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz

High-Efficiency WiFi 6

More connected devices can enjoy faster speeds

Centralized Cloud Management

Manage the whole network locally or from the cloud

160 MHz Channel

Double the data at peak transmission times on a single stream with HE160

Auto Channel Selection and Power Adjustment

Optimize overall performance by reducing WiFi interference

Omada Mesh Technology

More flexible and convenient wireless deployment

Seamless Roaming

Uninterrupted streaming when moving between APs

Ultra-Slim Design

Φ160 mm × 33.6 mm elegant design brings more agility

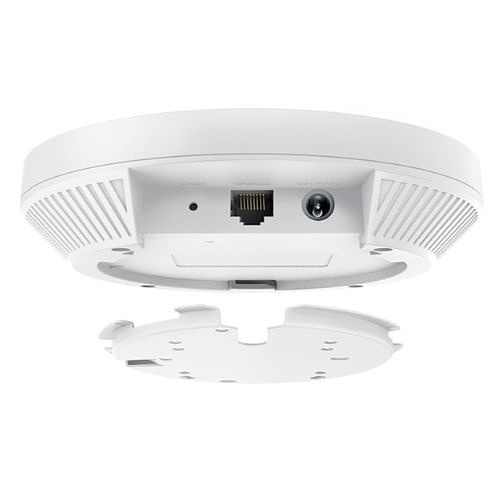

PoE+ Powered

Supports both DC (adapter included) and 802.3at PoE+ for flexible installations

Designed for Business EnvironmentsRequiring High-Performance WiFi | Hospitality

High-quality and full coverage Guest WiFi

Education

High-security WiFi to connect more devices

Shopping Mall

Seamless marketing WiFi coverage to boost business

Office

Stable, seamless, and high-security WiFi coverage

Meeting Room

Faster streaming, downloading, video conferencing, and more

Power up Your Business with New-Era Business WiFi 6

WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.

Lightning-Fast AX3000 WiFi 6 Speeds

New-era business WiFi 6 with speeds up to 2976 Mbps brings more than twice the speed of WiFi 5. Every application feels more fluid with drastically improved WiFi speeds.

  • 1024 QAM 25% more data encoded at one time
  • Long OFDM Symbol 11% faster speed
  • HE160 Double the data at peak transmission times on a single stream

Seamless Integration into Omada SDN

The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.

  • Hardware, Software, or Cloud-Based Controllers
  • Centralized Cloud Management
  • Intelligent Monitoring
  • Zero-Touch Provisioning (ZTP)
Auto Channel Selection and Power Adjustment to Optimize Overall Performance

Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

Main Features

  • Ultra-Fast True Wi-Fi 6 Speeds: Designed with the latest wireless Wi-Fi 6 technology featuring 1024-QAM, HE60 and Long OFDM Symbol, the EAP650 boosts dual-band Wi-Fi speeds up to 2976 Mbps.
  • Ultra-Slim Design: Compact design ensures simple installation while saving space. The elegant appearance makes EAP650 a perfect blend into any modern office, hotel, classroom, or café.
  • Integrated into Omada SDN: Omada software Defined Networking (SDN) platform integrates network devices including access points, switches & gateways with multiple control options offered - Omada Hardware controller, software Controller or Cloud-based controller*(Contact TP-Link for Cloud-Based Controller Details). Standalone mode also supported.
  • Cloud Access & Omada Compatibility: Remote Cloud access and Omada app enables centralized cloud management of the whole network from different sites - all controlled from a single interface anywhere, anytime. For devices that are compatible with SDN firmware, please visit 'From the manufacturer - Q&A' section or TP-Link website.
  • Advanced Wireless Tech: Supports Mesh WiFi, Seamless Roaming*(Omada Mesh & Seamless Roaming require the use of Omada SDN controllers), Band Steering, Load Balancing, Airtime Fairness and Beamforming technologies.

General Information

Name: TP-Link EAP650 AX3000 Ceiling Mount Wi-Fi Access Point
Category: TP-Link, Data Comm & Networking, Wireless Access Points
UPC Code: 840030703546
Country of Origin: CN. Country of origin is subject to change.

Specifications
