Product Overview
Increase Your Network Speed and Save Energy
5-Port Gigabit Desktop Switch
Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there's no need to worry about the type of cable to use.

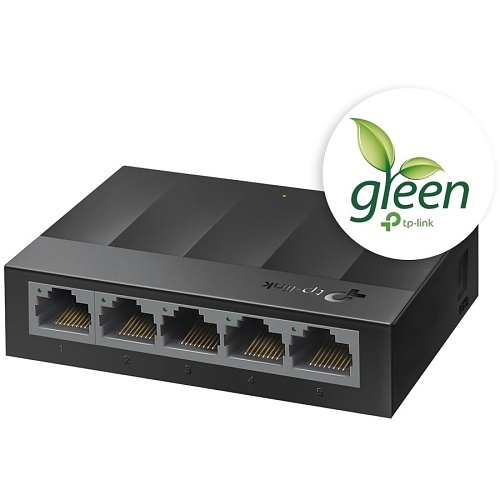

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills - it's a win-win!
Durable Metal Casing

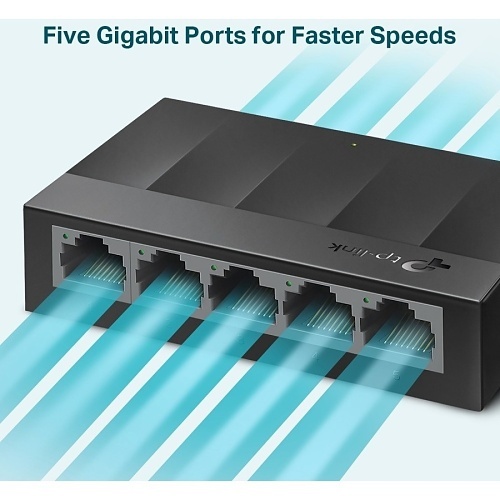

Increase the speed of your network with the LS1005G 5-port Gigabit desktop switch. Non-blocking, 5× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference.
Use Where You Need, However You Need
The LS1005G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
More from the Manufacturer
General Information
Name : TP-Link LS1005G 5-Port 10/100/1000Mbps Desktop Switch, LiteWave , TP-Link
Category : Network Switches
UPC Code : 845973085469
Specifications
General Information
ADI Part Number : FP-LS1005G
Brand Name : TP-Link
Manufacturer : TP-LINK Technologies Co., Ltd
Manufacturer Part Number : LS1005G
Product Line : LiteWave
Product Model : LS1005G
Product Name : 5-Port 10/100/1000Mbps Desktop Switch
Product Type : Ethernet Switch
Technical Information
Media Type Supported : Twisted Pair
Power Consumption : 3.70W
Interfaces/Ports
Modular : No
Network (RJ-45) : Yes
Port/Expansion Slot Details : 5 x Gigabit Ethernet Network
Total Number of Network Ports : 5
Management & Protocols
Manageable : No
Media & Performance
Network Technology : 10/100/1000Base-T
Network & Communication
Ethernet Technology : 10 Gigabit Ethernet
Layer Supported : 2
Networking Standards : IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Physical Characteristics
Depth : 2.8"
Depth (mm) : 71.882
Form Factor : Desktop Mount, Wall Mount
Height : 0.9"
Height (mm) : 22.86
Width : 3.5"
Width (mm) : 89.916
Power Description
Power Consumption (W) : 3.700
Power Source : Power Adapter
Warranty
Limited Warranty : 2 Year
Miscellaneous
Environmental Certification : RoHS
Environmentally Friendly : Yes
Package Contents : <ul> <li>5-Port 10/100/1000Mbps Desktop Switch</li> <li>Power Adapter</li> <li>Installation Guide</li> </ul>
