Simply45® the industry-leading brand for RJ45 modular plug innovation and performance solutions introduces our ProSeries Shielded with External Ground Pass-Through RJ45 Modular Plug, S45-1650P. The uniquely designed and patented Simply45® ProSeries S45-1650P simplifies and improves the terminated plug performance for shielded Cat6 and Cat6A F/UTP LAN cables. The Simply45® ProSeries S45-1650P Pass-Through RJ45 modular plugs are by far the highest performing, easiest to use, and most cost-effective way to professionally terminate Cat6 Shielded STP and Cat6A F/UTP LAN cables.

Simply45® introduces our ProSeries Pass-through RJ45 Modular Plugs with our exclusive Cap45® (PATENT: 10,811,831 B1). Cap45® quickly and easily snaps onto the front of the plug covering the exposed wire ends. No risk of electrical shorting due to improperly trimmed wire ends. Simply45® ProSeries is the right solution for commercial networking, certified systems, HDBaseT, PoE/PoH, and all professional installations.

Cap45® is a must-have for all pass-through RJ45 modular plugs used in commercial and certified system terminations.

Learn more about the Simply45® ProSeries innovations in our ProSeries Product Line section.

Our S45-1650P ProSeries Pass-Through RJ45 modular plugs incorporate the following features:

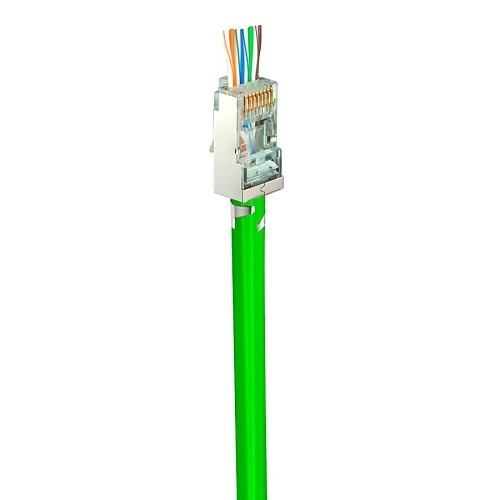

One-Piece Plug. The S45-1650P is a single piece fully shielded with an external ground pass-through RJ45 modular plug for shielded (STP) LAN cables. The integrated High Low Staggered design requires a No-load bar. This RJ45 design improves NEXT performance by reducing the length of untwisted wires inside the plug and is highly recommended for all PoE and Data applications. Supports performance standards: ANSI/TIA 568.2-D for Cat6/6a; ISO/IEC 11801 Class Ea and E. Supports 10GBaseT performance applications over shielded twisted pair cables. Works in all compliant RJ45 modular plug sockets.

Cap45® (PATENT: 10,811,831 B1). Cap45® is an isolation cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, covering the exposed wire ends. Cap45® is fast and easy to use. Fits all compliant RJ45 sockets. With Cap45®, any electrical risks associated with pass-through RJ45 modular plug exposed wire ends are now eliminated completely. Learn more about Cap45® in our ProSeries Product Line discussion. If you don't want to use Cap45®, no problem. It will not affect plug performance. You just won't have the Cap45® benefits.

High/Low Staggered Wire Insert. 1 piece plug construction. LAN cable wire conductors are easily inserted into the S45-1650P in a Staggered High/Low wire arrangement out through the front of the RJ45 pass-through modular plug. The S45-1650P is recommended for Cat6 shielded and Cat6A F/UTP LAN cables. It accommodates PE insulated wires. Wire conductor sizes for 23 AWG Solid from 1.05mm to 1.20mm (0.041"- 0.047"). For larger shielded STP wire conductor sizes or larger LAN cable OD, please refer to our Simply45® part S45-1750P or S45-1755P.

3 Prong Pin Design with 50µ of True 24ct Gold Plating. All Simply45® pass-through RJ45 modular plugs uses only 50µ 24ct gold plated 3-Prong pin design instead of a 2-Prong design as found on most other pass-through RJ45 modular plugs. A 3-Prong pin provides 3 points of contact with the copper wire conductor instead of 2. This improves electrical performance and signal integrity. A 3-prong pin also holds stronger onto the wire conductors. To learn more about why we only use 3-Prong pins and 50µ 24ct gold-plated contacts,
