Genesis 45061104 18/2 Solid Plenum Fire Alarm Cable, Unshielded, FPLP, CL3P, FT6, 1000' (304.8m), REELEX Pull Box, Red (Replaces 45062104)
45061104|WG-45061104
Color: Red
Cable Length: 1000'
Package Type: REELEX Pull Box
Number of Conductors: 2
American Wire Gauge: 18AWG
Genesis 45061104 18/2 Solid Plenum Fire Alarm Cable, Unshielded, FPLP, CL3P, FT6, 1000' (304.8m), REELEX Pull Box, Red (Replaces 45062104)
45061104|WG-45061104
Color: Red
Cable Length: 1000'
Package Type: REELEX Pull Box
Number of Conductors: 2
American Wire Gauge: 18AWG
Genesis
Genesis 45061104 18/2 Solid Plenum Fire Alarm Cable, Unshielded, FPLP, CL3P, FT6, 1000' (304.8m), REELEX Pull Box, Red (Replaces 45062104)
45061104Â |Â WG-45061104
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

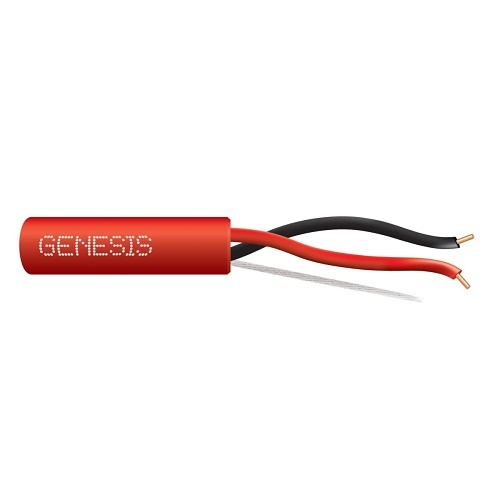

This Genesis cable features 2 solid 18 AWG copper conductors and a plenum rating. Choose this cable for a dependable fire alarm system wiring solution.
Main Features
- Solid bare copper conductors
- Rated for plenum, riser, and general purpose indoor installation
- 1000' (304.8 m) REELEX pull box
- Red jacket
General Information
Name: Genesis 45061104 18/2 Solid Plenum Fire Alarm Cable, Unshielded, FPLP, CL3P, FT6, 1000' (304.8m), REELEX Pull Box, Red (Replaces 45062104)
Category: Genesis, Wire & Cable, Fire & Life Safety Cables, Plenum Unshielded Cables
UPC Code: 619172017602
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-45061104 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 45061104 Packaged Quantity 1 Product Model 45061104 Product Name 18 AWG 2C SOL Plenum, Red, 1000 ft. Pull Box Product Type Control Cable Weight (Approximate) (g) 7030.682 Â
-
American Wire Gauge 18AWG Cable Listing CL3P, FPLP, FT6 Cable Rating Plenum Conductor Count 2 Conductor Material Bare Copper Connector on First End Bare Wire Connector on Second End Bare Wire Core/Cladding Diameter 18/2 Device Supported Fire Alarm Jacket Material LS PVC Number of Conductors 2 Number of Pairs 1 Shielding No Solid or Stranded Solid Â
-
ADI Part Number Replaces WG-45062104 Model Number Replaces 45062104 Â
-
Cable Length 1000' Cable Length (mm) 304800 Color Red Insulation Material LS-PVC Material PVC Package Type REELEX Pull Box Weight (Approximate) 15.50 lb Â
-
Limited Warranty 3 Year; 3-for-1 Â
-
Environmental Certification RoHS Indoor/Outdoor Indoor TAA Compliant Yes Â
