Genesis 4513104W 14/2 Solid Plenum Fire Alarm Cable, Unshielded, FPLP, CL3P, FT6, 1000' (304.8m), Reel, Red with White Stripe (Replaces 4513214W)
4513104W|WG-4513104W
Color: Red/White Stripe
Cable Length: 1000'
Package Type: Reel
Number of Conductors: 2
American Wire Gauge: 14AWG
Genesis 4513104W 14/2 Solid Plenum Fire Alarm Cable, Unshielded, FPLP, CL3P, FT6, 1000' (304.8m), Reel, Red with White Stripe (Replaces 4513214W)
4513104W|WG-4513104W
Color: Red/White Stripe
Cable Length: 1000'
Package Type: Reel
Number of Conductors: 2
American Wire Gauge: 14AWG
Genesis
Genesis 4513104W 14/2 Solid Plenum Fire Alarm Cable, Unshielded, FPLP, CL3P, FT6, 1000' (304.8m), Reel, Red with White Stripe (Replaces 4513214W)
4513104WÂ |Â WG-4513104W
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

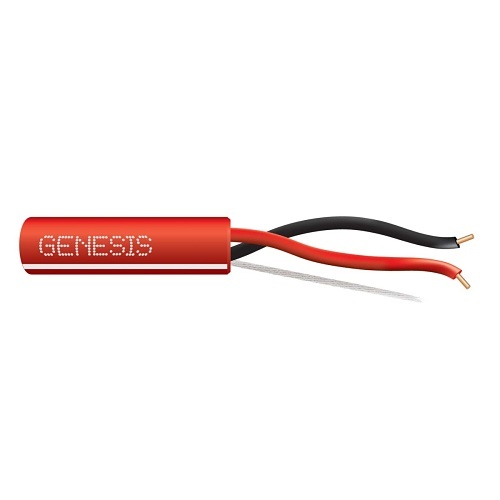

This Genesis® cable features 2 solid 14 AWG copper conductors and a plenum rating. Choose this cable for a dependable fire alarm system wiring solution.
Main Features
- Solid bare copper conductors
- Rated for plenum, riser, and general purpose indoor installation
- 1000' (304.8 m) reel
- Red jacket with white extruded stripe
General Information
Name: Genesis 4513104W 14/2 Solid Plenum Fire Alarm Cable, Unshielded, FPLP, CL3P, FT6, 1000' (304.8m), Reel, Red with White Stripe (Replaces 4513214W)
Category: Genesis, Wire & Cable, Fire & Life Safety Cables, Plenum Unshielded Cables
UPC Code: 886618237713
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-4513104W Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 4513104W Packaged Quantity 1 Product Model 4513104W Product Name 4513104W - 14 AWG 2C Sol Plenum, Red w White Stripe, 1000 ft. Reel Product Type Fire Alarm Cable Â
-
American Wire Gauge 14AWG Cable Listing CL3P, FPLP, FT6 Cable Rating Plenum Conductor Count 2 Conductor Material Bare Copper Connector on First End Bare Wire Connector on Second End Bare Wire Core/Cladding Diameter 14/2 Device Supported Fire Alarm Jacket Material LS PVC Number of Conductors 2 Number of Pairs 1 Shielding No Solid or Stranded Solid Â
-
TAA Compliant Yes Â
-
Cable Length 1000' Color Red/White Stripe Insulation Material LS-PVC Material Bare Copper Package Type Reel Weight (Approximate) 32.60 lb Â
-
Limited Warranty 3 Year; 3-for-1 Â
-
Environmental Certification RoHS Environmentally Friendly Yes Features Plenum unshielded fire alarm cables Indoor/Outdoor Indoor Â
