George Risk Industries

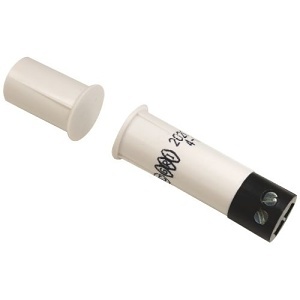

GRI 2020-TWG 3/8" Press Fit Recessed Switch Set, Wide Gap 1" ,10W, 160VDC, 0.40A, Closed Loop, N/O, A, Brown
2020-TWG-B
|GI-2020TWGB
Shop all George Risk Industries
GRI 2020-TWG 3/8" Press Fit Recessed Switch Set, Wide Gap 1" ,10W, 160VDC, 0.40A, Closed Loop, N/O, A, Brown
2020-TWG-B | GI-2020TWGB
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
G.R.I.'s 3/8" recessed press-to-fit contacts can be installed in many different positions to accommodate a variety of applications. The switch and magnet can be mounted end-to end within an imaginary arc around the switch, or parallel to the switch. When the application calls for a wide gap switch, install the painted end of the bare magnet facing the switch as they are polarity sensitive.
- Lifetime Warranty
- Colors: White, Brown, Gray or Black
- Available in closed loop, open loop, SPDT and DPDT
- UL and ULC approved
- Shorter length case
- Softer fill to protect fragile reed
- Standard 12" leads or terminal block
- Longer leads, zip cord or jacketed cable on request
- Built-in E.O.L. resistors and diodes are available
- Switch or magnet are available separately
- Extra wide gap bare magnets
- Standard gap 1/2" +
- Wide gap 1" +
- Extra wide gap 1.5" +
- Supervisory loops available
Main Features
- Longer Leads, zip cord or jacketed cable upon request ;
- Built-in E.O.L. resistors and diodes upon request;
- Switches or magnets available separately
General Information
Name: GRI 2020-TWG 3/8" Press Fit Recessed Switch Set, Wide Gap 1" ,10W, 160VDC, 0.40A, Closed Loop, N/O, A, Brown
Category: George Risk Industries, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code: 697625005130
Country of Origin: US. Country of origin is subject to change.
Specifications
ADI Part Number GI-2020TWGB Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number 2020-TWG-B Product Model 2020-TWG Product Name 2020-TWG Magnetic Contact Product Series 2020-T Product Type Magnetic Contact
Connectivity Technology Wired Material Steel Standard Gap 1"
Color Brown
Power Source DC
Contact Type N.O. Installation Type Hybrid Mount Type Recessed Mount
Limited Warranty Lifetime Warranty
Country of Origin US Features 3/8" Recessed Press Fit Switch, Extra wide gap bare magnets, Hermetically sealed, Plated contacts resist sticking or freezing, Shorter length case, Softer fill to protect fragile reed, Standard 12" leads or terminal block
