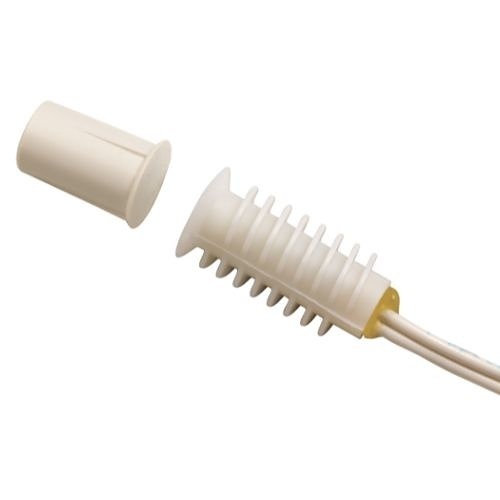

GRI 2120-12WG 3/8" Press Fit Ribbed Recessed Switch Set, 1" Wide Gap, Closed Loop, N/O, A, White
GRI 2120-12WG 3/8" Press Fit Ribbed Recessed Switch Set, 1" Wide Gap, Closed Loop, N/O, A, White
GRI 2120-12WG 3/8" Press Fit Ribbed Recessed Switch Set, 1" Wide Gap, Closed Loop, N/O, A, White
2120-12WGÂ |Â GI-212012WGW
Please sign in to view pricing and availability and to add to cart.
Product Overview
The GRI 2120 Ribbed Switch, designed to complete a multi-task role, is a unique combination of special features and materials. The unusual ribbed outside diameter permits a secure mounting over a wide range of drilled hole sizes. The installer does not have to glue this recessed switch into a slightly oversized hole, as the flexible ribs conform as it is pressed into the wood. Self adjusting to fit the larger hole, the 2120 also centers itself to the coverage of the misdrilled hole. Picked especially for the 2120 Ribbed Switches, a new material with enhanced memory properties allows the ribbed "O" rings to flex enough to fit an undersized hole but still maintain a firm holding force in an over-sized hole. This mix of features yields an additional bonus in that it provides a high degree of protection from crushing, such as that encountered when wood swells or headers shift.
Main Features
- Protects Reed from SwellingWood and Header Shi'
- Covers Over-drilled Holes
- Self-centering
- Solves Angled Wire Path Problems
- Supervisory Loops Available
- Standard 12" Leads
- Longer Leads, Zip Cord and Jacketed Cable on Request
- Built-in E.O.L. Resistors and Diodes are Available
- Available in White or Brown
- Lifetime Warranty
General Information
Specifications
-
ADI Part Number GI-212012WGW Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number 2120-12WG-W Product Model 2120-12WG Product Name 2120-12WG Magnetic Contact Product Series 2120-12 Product Type Magnetic Contact Â
-
Connectivity Technology Wired Contact Configuration N.O. Mounting Type Recessed Mount Â
-
Color White Â
-
Power Source DC Â
-
Contact Type Closed Loop Installation Type Hybrid Â
-
Limited Warranty Lifetime Â
-
Additional Information - Protects reed from swelling wood and header shift
- Closed loop, flexible ribs, wide gap
- Solves angled wire path problems
- 3/8" Recessed magnetic contact
- Covers over-drilled holes
