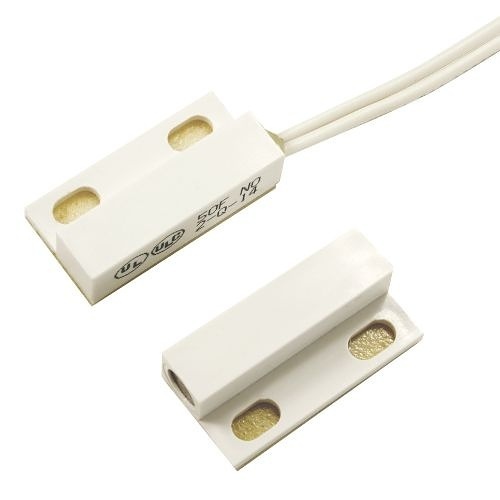

GRI 50F-12WG 1/2" Miniature Surface Mount Switch Set, Wide Gap 3/4"+, Closed Loop, Reed Form, 10W, Breakaway Flanges, White
50F-12WG|GI-50F12WGW
GRI 50F-12WG 1/2" Miniature Surface Mount Switch Set, Wide Gap 3/4"+, Closed Loop, Reed Form, 10W, Breakaway Flanges, White
50F-12WG|GI-50F12WGW
George Risk Industries
GRI 50F-12WG 1/2" Miniature Surface Mount Switch Set, Wide Gap 3/4"+, Closed Loop, Reed Form, 10W, Breakaway Flanges, White
50F-12WGÂ |Â GI-50F12WGW
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The GRI 50F Series switch sets are the most chosen configurations for residential installations. A low profile plus self-adhesive 3M tape make installing the sets quick and simple. The 50F comes with a breakaway flange for applications where screw mounts are advisable.
Main Features
- Excellent for residential applications
- Surface mount magnetic contact
- Self stick or breakaway screw down flange
- Center or end 12-inch #22 AWG lead
- UL and ULC Approved center and end leads available
- Longer leads, zip vord or jacketed cable
- Hermetically sealed
- Adhesive and screw mount
- Plated contact resist sticking or freeziuilt-In EOL resistor and diode
- Supervisory loop
General Information
Name: GRI 50F-12WG 1/2" Miniature Surface Mount Switch Set, Wide Gap 3/4"+, Closed Loop, Reed Form, 10W, Breakaway Flanges, White
Category: George Risk Industries, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code: 697625009411
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number GI-50F12WGW Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number 50F-12WG-W-BA Product Model 50F-12WG-BA Product Name 50F-12WG-BA Magnetic Contact Product Series 50F Product Type Magnetic Contact Â
-
Connectivity Technology Wired Contact Configuration N.O. Mounting Type Surface Mount Standard Gap 0.75" Standard Gap (mm) 25.4 Â
-
Color White Product Color White Â
-
Power Source DC Â
-
Contact Type Closed Loop Installation Type Residential Â
-
Limited Warranty Lifetime Â
-
Additional Information - Maximum Switching Voltage:160(VDC)
- Maximum Switching Current:0.400A
- Maximum Contact Rating: 10W
- Electrical Configuration: N/O
- Breakaway flange
- Wide gap 3/4"+
- Closed loop
- End lead
Package Contents - 50F-12WG-BA Magnetic Contact
- Mounting Hardware
