GRI GI-E19912W 1" Steel Door Recessed Switch Set, Standard Gap, 5W, 175VDC, 0.25 Amp, DPDT, X 2, White
GRI GI-E19912W 1" Steel Door Recessed Switch Set, Standard Gap, 5W, 175VDC, 0.25 Amp, DPDT, X 2, White
GRI GI-E19912W 1" Steel Door Recessed Switch Set, Standard Gap, 5W, 175VDC, 0.25 Amp, DPDT, X 2, White
GI-E19912Â |Â GI-E19912W
Please sign in to view pricing and availability and to add to cart.
Product Overview

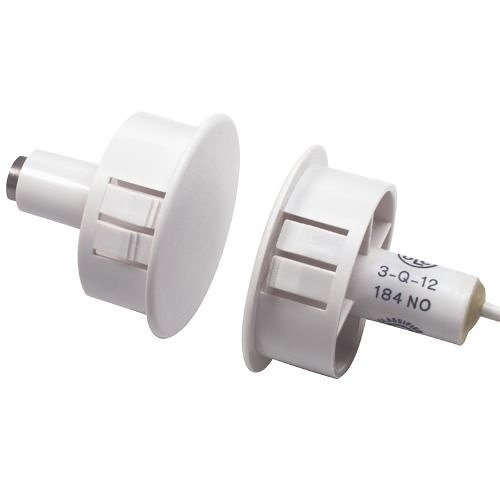

The GRI 180 Series is the industry standard 3/4" diameter recessed steel door switch set with 12" leads. The 184 Series is a 1" diameter switch set.
The innovative GRI 8080-T Series is a 3/4" diameter recessed switch set designed for residential, commercial and industrial steel doors and frames. The shorter length and the introduction of PC board type terminals makes the installation of the set quick and simple with no soldering, B connectors or tape to catch during installation or removal, reducing the cost of installation and creating greater profitability.
Main Features
- Lifetime Warranty
- Colors:White, Brown, Grey or Black
- UL and ULC Approved
- 180-12 & 184-12 UL 10C Fire Rated
- Available in Closed Loop, Open Loop and SPDT
- 3/4" and 1" Diameter Mounting
- Standard 12" Leads or Terminals
- Self-Locking
- Solid, One Piece Design
- 7/8" Diameter also Available - Call Factory
General Information
Specifications
-
ADI Part Number GI-E19912W Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number GI-E19912W Product Model GI-E19912 Product Name 180 Magnetic Contact Product Series 180 Product Type Magnetic Contact Â
-
Connectivity Technology Wired Contact Configuration DPDT Contact Form Form C Contact Resistance 140000 Micro Ohm Lead Length 12" Mounting Type Recessed Mount Power Consumption 5W Recommended Use Door Standard Gap 1" Â
-
Application/Usage Commercial, Industrial, Residential Color White Product Material Steel Â
-
Input Current 250 mA Input Voltage 175V DC Power Source DC Â
-
Contact Type Closed Loop, Open Loop Installation Type Commercial Â
-
Limited Warranty Lifetime Â
-
Features End of Line (EOL) Resistor, Self-lock Mounting Â
