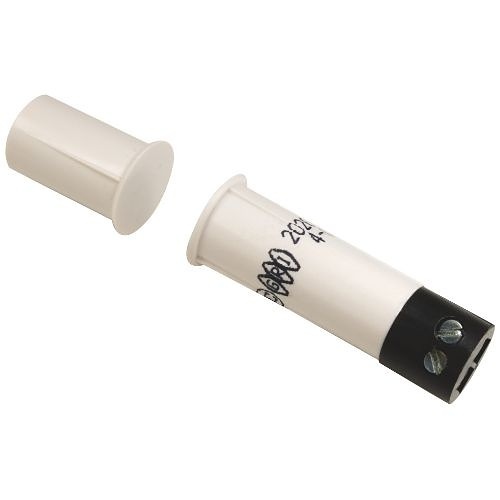

GRI 2020-T 3/8" Press Fit Recessed Switch Set, Standard Gap 1/2"+, 10W, 160VDC, .040A, Closed Loop, N/O, A, Brown
2020-T|GI-2020TBR
Color: Brown
Standard Gap: 0.5"
GRI 2020-T 3/8" Press Fit Recessed Switch Set, Standard Gap 1/2"+, 10W, 160VDC, .040A, Closed Loop, N/O, A, Brown
2020-T|GI-2020TBR
Color: Brown
Standard Gap: 0.5"
George Risk Industries
GRI 2020-T 3/8" Press Fit Recessed Switch Set, Standard Gap 1/2"+, 10W, 160VDC, .040A, Closed Loop, N/O, A, Brown
2020-TÂ |Â GI-2020TBR
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
G.R.I.'s 3/8" recessed press-to-fit contacts can be installed in many different positions to accommodate a variety of applications. The switch and magnet can be mounted end-to end within an imaginary arc around the switch, or parallel to the switch. When the application calls for a wide gap switch, install the painted end of the bare magnet facing the switch as they are polarity sensitive.
- Lifetime Warranty
- Colors: White, Brown, Gray or Black
- Available in closed loop, open loop, SPDT and DPDT
- UL and ULC approved
- Shorter length case
- Softer fill to protect fragile reed
- Standard 12" leads or terminal block
- Longer leads, zip cord or jacketed cable on request
- Built-in E.O.L. resistors and diodes are available
- Switch or magnet are available separately
- Extra wide gap bare magnets
- Standard gap 1/2" +
- Wide gap 1" +
- Extra wide gap 1.5" +
- Supervisory loops available
Main Features
- Longer Leads, zip cord or jacketed cable upon request ;
- Built-in E.O.L. resistors and diodes upon request;
- Switches or magnets available separately
General Information
Name: GRI 2020-T 3/8" Press Fit Recessed Switch Set, Standard Gap 1/2"+, 10W, 160VDC, .040A, Closed Loop, N/O, A, Brown
Category: George Risk Industries, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code: 697625005000
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number GI-2020TBR Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number 2020-T-B Packaged Quantity 10 Product Model 2020-T Product Name 2020-T Magnetic Contact Product Series 2020 Product Type Magnetic Contact Â
-
Connectivity Technology Wired Contact Configuration N.O. Mounting Type Recessed Mount Standard Gap 0.5" Standard Gap (mm) 12.7 Â
-
Color Brown Package Type Bag Product Color Brown Product Material Steel Â
-
Power Source DC Â
-
Contact Type Closed Loop Installation Type Hybrid Â
-
Limited Warranty Lifetime Â
-
Additional Information - Recessed magnetic contacts
- Press to fit
- 12" leads #22 AWG leads or screw terminals
- Hermetically sealed
- Plated contacts resist sticking or freezing
