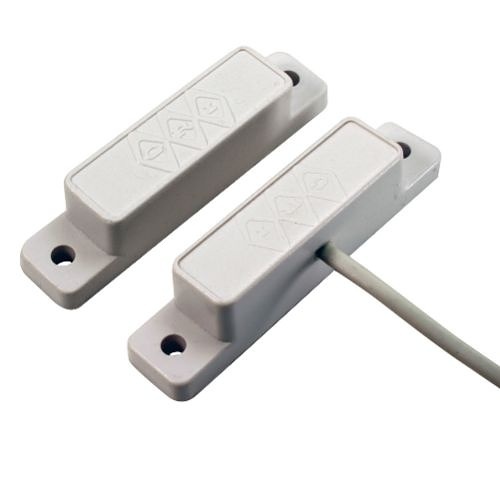

GRI 29PD-G 29P Series Standard Surface Mount Magnetic Reed Switch Set, Standard Gap, DPDT, CX2, Gray
29PD-G | GI-29PDGRAY
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
This series offers a standard gap of 1 inch, a wide gap of up to 1 1/2 inches and an extra wide gap of 2 inches and can be installed on a steel surface with a minimum gap penalty. The “P” style is a pre-wired switch with 2 feet of conductor cable. A broad range of mounting brackets are also available.
Main Features
- This Versatile Series Sets The Industry Standard For Co mmercial and Light Industrial Applications
- Surface Mount Magnetic Contacts
- 24" #22 AWG 2 Conductor Jacketed Lead on 29PA
- Longer Leads on 29PA Upon Request
- Covers, Spacers and Mounting Hardware Included
- Built-in E.O.L. Resistors and Diodes Upon Request
- Supervisory Loops and Dummy Terminals Upon Request
- Switches and Magnets Available Separately
- Colors: White, Brown, Gray
- Private Labeling Upon Request
General Information
Name: GRI 29PD-G 29P Series Standard Surface Mount Magnetic Reed Switch Set, Standard Gap, DPDT, CX2, Gray
Category: George Risk Industries, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code: 697625032433
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number GI-29PDGRAY Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number 29PD-G Product Model 29PD-G Product Name 29PD-G Magnetic Contact Product Series 29 Product Type Magnetic Contact
-
Connectivity Technology Wired Contact Configuration DPDT Contact Form Form C Contact Resistance 140000 Micro Ohm Contact Resistance (Ohm) 0.14 Lead Length 24" Lead Length (mm) 609.6 Mounting Type Surface Mount Standard Gap 1" Standard Gap (mm) 25.4
-
Application/Usage Commercial, Industrial Color Gray Color Family Gray Product Color Gray Product Material Steel
-
Power Source DC
-
Installation Type Commercial
-
Limited Warranty Lifetime
-
Additional Information - Screw Down Flanges
- Concealed Screw Terminals on 28 Series
- Side Screw Terminals on 29 Series
Features End of Line (EOL) Resistor Package Contents - 29PD-G Magnetic Contact
- Covers
- Spacers
- Mounting Hardware
