GRI 400 400 Series Industrial Surface Mount Switch Set, 1-1/2 "Standard Gap, 10W, 160VDC, 040A, Closed Loop, N/O, and Concealed Screw Terminals, Gray
400|GI-400G
Color: Gray
GRI 400 400 Series Industrial Surface Mount Switch Set, 1-1/2 "Standard Gap, 10W, 160VDC, 040A, Closed Loop, N/O, and Concealed Screw Terminals, Gray
400|GI-400G
Color: Gray
George Risk Industries
GRI 400 400 Series Industrial Surface Mount Switch Set, 1-1/2 "Standard Gap, 10W, 160VDC, 040A, Closed Loop, N/O, and Concealed Screw Terminals, Gray
400Â |Â GI-400G
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The G.R.I. series of commercial and industrial switch sets offers the installer two choices: The 400 series incorporates hidden terminals, inset into the recessed back to provide tamper resistant installations. The 410 series has the standard terminals located on the side of the switch. Both options give the installer a regular gap of 1 1/2" while the wide gap version is 3", which cover the various types of steel door and frame conditions found at every commercial and industrial site.
Main Features
- Spacers and mounting hardware are included with the set. Switches, magnets and mounting brackets are also available separately
- The GRI 400 series of commercial and industrial switch sets incorporates hidden terminals, inset into the recessed back to provide tamper resistant installations.Â
- Covers and mounting hardware included
- Built in E.O.L. Resistors and Diodes upon request
- Colors: white, brown and gray
- Private labeling upon request
- Indicates U.L. 10C Fire Rating
- Lifetime Warranty
- The unit has a regular gap of 1 1/2? which covers the various types of steel door and frame conditions found at every commercial and industrial site.Â
- Wide gap up to 3"
General Information
Name: GRI 400 400 Series Industrial Surface Mount Switch Set, 1-1/2 "Standard Gap, 10W, 160VDC, 040A, Closed Loop, N/O, and Concealed Screw Terminals, Gray
Category: George Risk Industries, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code: 697625007820
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number GI-400G Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number 400-G Product Model 400 Product Name 400 Magnetic Contact Product Type Magnetic Contact Â
-
Connectivity Technology Wired Contact Configuration N.O. Mounting Type Surface Mount Standard Gap 1.5" Â
-
Color Gray Product Material Steel Â
-
Power Source DC Â
-
Contact Type Closed Loop Installation Type Hybrid Â
-
Limited Warranty Lifetime Â
-

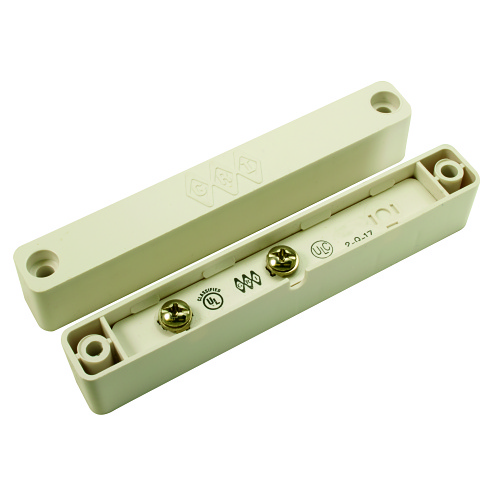

Additional Information - Industrial surface mount magnetic contact
- Maximum switching voltage: 160 vdc
- Maximum contact rating: 10 W
- Concealed terminals
- Closed loop
Package Contents - 400 Magnetic Contact
- Mounting Hardware
- Spacers
