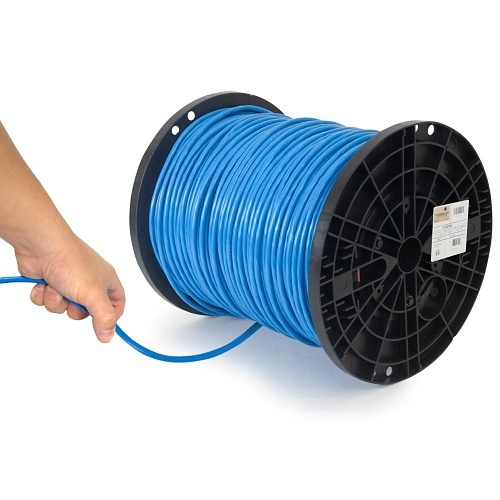

ICC ICCABP6ABL CAT6A Network Cable, C6A 650 UTP Solid Cable 23G, 4-Pair, CMP, 1000', Blue
ICC ICCABP6ABL CAT6A Network Cable, C6A 650 UTP Solid Cable 23G, 4-Pair, CMP, 1000', Blue
ICC ICCABP6ABL CAT6A Network Cable, C6A 650 UTP Solid Cable 23G, 4-Pair, CMP, 1000', Blue
ICCABP6ABLÂ |Â H2-CABP6ABL
Please sign in to view pricing and availability and to add to cart.
Product Overview
Overview
ICC CAT 6A 10Gig UTP cable provides transmission performance beyond 650MHz and Alien Crosstalk (AXT) requirements exceeding the industry standards and ETL Verified to TIA-568-C.2 for supporting the operation of 10Gig Ethernet applications (10GBASE-T). It is designed with unique spline design and non-concentric to minimize AXT from neighboring cables. This cabling provides support for high bandwidth applications such as data centers and other data intensive or backbone requirements. This cable qualifies installations for the ICC Lifetime Performance Limited Warranty when installed by ICC Certified Elite installers (conditions apply).
Feature
INDUSTRY STANDARDS
? ETL Verified to TIA-568-C.2
? UL Type CMR for non-plenum
? UL Type CMP for plenum
? FT4
? UL 444
APPLICATIONS
? 10 Base-T
? 100 Base-T (IEEE 802.3u)
? 1000 Base-T
? High Definition Video
? Digital Broadcast Video/IP Video/VoIP
? ISDN/ADSL
? 622Mbps ATM
? Conductor: Solid Bare Copper
? Insulation: FEP
? Jacket: Flame Retardant PVC
? Cable spine separator X
? Component: 4 twisted pair
? Outer Dia.(in): 0.34"
? Sequential footage marking for easy usage tracking.
? Packaged on a reel (Size: 17.3W X 13.0H
? Weight: 45 LBS
? Temperature Rating (°F)
? Installation temperature: 32 to 140 Fahrenheit (°F)
? Operating temperature: -4 to 167 Fahrenheit (°F)
Main Features
- Allows you to access all of the networked data, swiftly and securely
- Features Category 6a cable type
- Features Bare Wire connector, permitting you to establish a connection with a network device
General Information
Specifications
-
ADI Part Number H2-CABP6ABL Brand Name ICC Manufacturer ICC Manufacturer Part Number ICCABP6ABL Product Model ICCABP6ABL Product Name Cat.6a UTP Cable Product Type Network Cable Â
-
Cable Rating Plenum Device Supported Network Device Jacket Material PVC Solid or Stranded Solid Â
-
Cable Length 1000' Color Blue Material Polyvinyl Chloride (PVC) - Jacket Package Type Reel Â
-
Environmental Certification RoHS Environmentally Friendly Yes Â
