Product Overview
Function
Face Counting
With the embedded deep learning algorithms, the camera integrates multiple intelligences. It counts persons and samples the face features simultaneously, and compares them with the built-in face library, so to remove the duplicated person. It counts persons and reports a face alarm simultaneously to achieve both the entrance control and people counting.
Hard Hat Detection
With the embedded deep learning algorithms, the camera detects the persons in the specified region. It detects whether the person is wearing a hard hat, and captures the head of the person and reports an alarm if not.
Multi-Target-Type Detection
With the embedded deep learning algorithms, the camera detects and captures the face and human body in the specified region and outputs the features, such as gender, age and top color. It supports a structurized modeling of the face and human body to achieve a structurized data collection.
Queue Management
With embedded deep learning based algorithms, the camera detects queuing-up people number and waiting time of each person. The body feature detection algorithm helps filter out wrong targets and increase the accuracy of detection.
Metadata
Metadata uses individual instances of application data or the data content. Metadata can be used for third-party application development.
Smooth Streaming
Smooth streaming offers solutions to improve the video quality in different network conditions. For example, in poor network conditions, adapting to the detected real-time network condition, streaming bit rate and resolution are automatically adjusted to avoid mosaic and lower latency in live view; in multiplayer network conditions, the camera transmits the redundant data for the self-error correcting in back-end device, so that to solve the mosaic problem because of the packet loss and error rate.
Anti-Corrosion Coating(-Y)
The camera adopts high weatherproof and wearproof molding powder that confirms to AAMA2604-02 and Qualicoat (Class2) specifications, and uses two-layer special spraying technology, so its surface has excellent long-term anti-corrosion performance and physical protection function. Besides, all the exposed screws use SUS316 material and features high anti-corrosion performance. Therefore, the whole camera meets anti-corrosion requirements NEMA 250-2018.
General Information

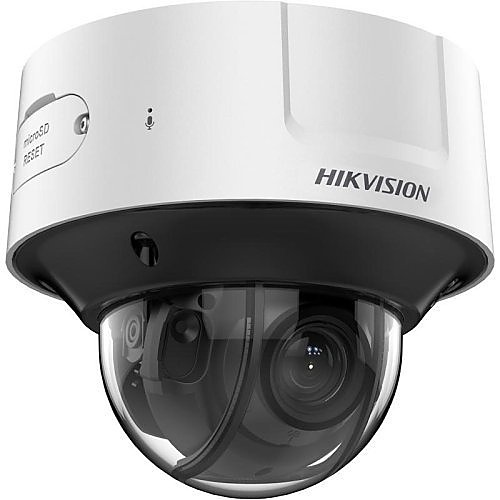

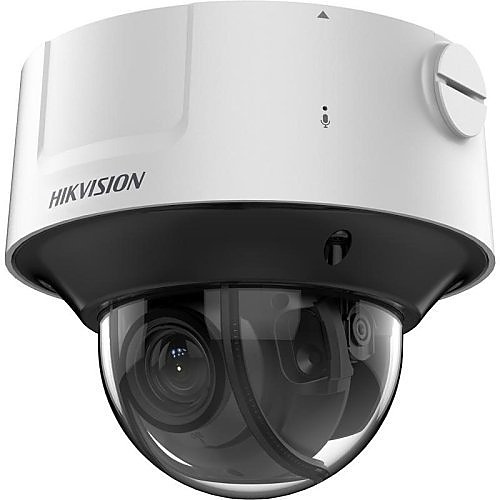

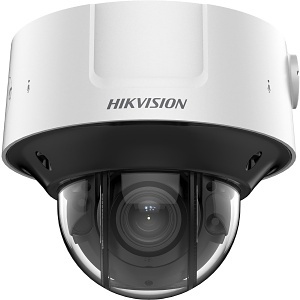

Name : Hikvision IDS-2CD7586G0-IZHSY 2.8-12MM DeepinView Series 4K Outdoor Dome Camera, 2.8-12mm Motorized Lens, 120dB WDR, IP67 IK10, White , Hikvision
Category : Dome Cameras
UPC Code : 842571140736
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : HX-BL7586IY
Brand Name : Hikvision
Manufacturer : Hikvision
Manufacturer Part Number : IDS-2CD7586G0-IZHSY 2.8-12MM
Product Line : DeepinView
Product Model : IDS-2CD7586G0-IZHSY
Product Name : 8 MP IR Varifocal Dome Network Camera
Product Series : DeepinView
Product Type : Network Camera
Weight (Approximate) (g) : 1550
Technical Information
Connectivity Technology : Wired
Effective Camera Resolution : 8MP
Field of View : horizontal FOV 112.3° to 41.2°, vertical FOV 58° to 23.1°, diagonal FOV 137.3° to 47.3°
HD Recording : Yes
Lens Mount Type : Integrated
Lens Type : Motorized
Maximum Aperture : f/2.5
Maximum Focal Length (mm) : 12
Maximum Frame Rate : 30 fps
Minimum Focal Length : 2.80 mm
Optical Zoom : 4.3x
Camera
Night Vision Distance : 98.43 ft
Night Vision Distance (mm) : 30000
Wide Dynamic Range : Yes
Display & Graphics
Color Supported : Color
Effective Camera Resolution (Pixel) : 8000000
Maximum Video Resolution : 3840 x 2160
Environmental Conditions
Maximum Operating Temperature : 140°F (60°C)
Maximum Operating Temperature (°F) : 140
Minimum Operating Temperature : -22°F (-30°C)
Minimum Operating Temperature (°F) : -22
Operating Humidity : 95%
Exposure
Longest Shutter Speed : 1 Second
Shortest Shutter Speed : 1/100000 Second
Interfaces/Ports
Network (RJ-45) : Yes
Lens
Focal Length : 2.8-12 mm
Lens Included : Yes
Maximum Focal Length : 12 mm
Minimum Aperture : f/1.2
Network & Communication
Remote Management : Yes
Physical Characteristics
Color : White
Diameter (mm) : 162
Durability : Dust Resistant, Vandal Proof, Water Resistant
Form Factor : Dome
Weight (Approximate) : 3.42 lb
Power Description
Input Voltage : 12V DC
Input Voltage (V DC) : 12
Product Information
Diameter : 6.4"
Mount Type : Corner Mount, Pendant Mount, Vertical Mount, Wall Mount
Projection Lens
Minimum Focal Length (mm) : 2.8
Storage
Recording Formats : HD
Video
Maximum Frame Rate (fps) : 30
Miscellaneous
Features : 3D Digital Noise Reduction, Alarm Triggering, Audio Compression, Back Light Compensation (BLC), Built-in Card Reader, Cross Line Detection, Day/Night, Defog, Highlight Compensation (HLC), HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, Region of Interest, Tampering Alarm
Impact Protection Rating : IK10
Indoor/Outdoor : Outdoor
Ingress Protection Rating : IK10, IP67
TAA Compliant : No
