ICC ICCABP6VBL CAT6 Plenum Cable, 23/4 Solid BC, UTP, CMP, 1000' (305m) Reel Box, Blue
ICC ICCABP6VBL CAT6 Plenum Cable, 23/4 Solid BC, UTP, CMP, 1000' (305m) Reel Box, Blue
ICC ICCABP6VBL CAT6 Plenum Cable, 23/4 Solid BC, UTP, CMP, 1000' (305m) Reel Box, Blue
ICCABP6VBLÂ |Â H2-CABP6VBL
Please sign in to view pricing and availability and to add to cart.
Product Overview
CC’s Category 6 500MHz CMP/UTP Solid cables are manufactured based on the TIA 568-C.2 industry standard and are UL and cUL listed and verified. Available in spools of 1000 feet in a convenient pull box dispensing carton. Constructed with sequential footage markings on the outer jacket for easy to measure usage tracking. These cables offer a competitive solution designed to provide the ultimate performance necessary for today’s demanding voice, data, video, and security applications in commercial and residential installations.
Features
• Exceeds TIA 568-C.2 Category 6.

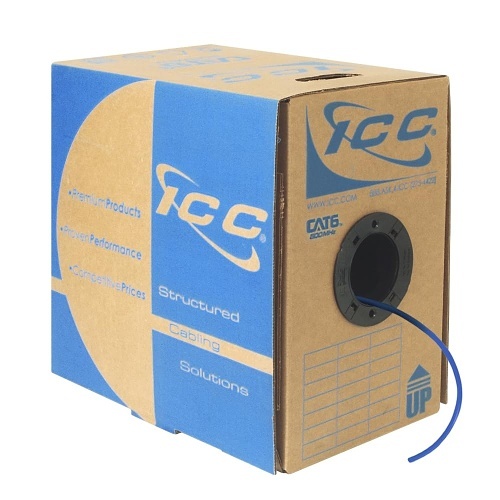

• Easy to dispense cable with REELEX design box, saving time and energy on the job site.
• Bare Solid Copper Wire construction to assure performance and quality.
• Convenient sequential footage markings for usage tracking.
• Plenum (CMP) rated required in most commercial installations.
• Ideal for data, digital video, broadband, and baseband analog video.
• UL listed.
Applications
Standard:
ANSI/TIA 568-C2
ANSI/TIA 862
ISO/IEC 11801
ICEA S-102-700
ICEA S-116-732
NEC/CEC Type CMP
ROHS Compliant Directive 2002/95/EC
UL 444
10/100/1000Base-T
IEEE 802.3at for PoE Plus
High Definition Video
Digital Broadcast Video/IP Video/VoIP
ISDN/ADSL
155Mbps ATM
Conductor: Solid Bare Copper
Insulation: FRPE
Jacket: FR-PVC
Component: 4 twisted pair
Insulation Dia. (in): 0.039
Outer Dia. (in): 0.200?
Sequential footage marking for easy usage tracking.
Packaged in a pull box.
Wired pairs are vividly colored for quick identification.
Temperature Rating (°F)
Installation temperature: 32 to 140 Fahrenheit (°F)
Operating temperature: -4 to 167 Fahrenheit (°F)
Main Features
- Exceeds TIA 568-C.2 Category 6 standard
- Easy to dispense cable with REELEX design box, saving you energy and time on the job site
- Bare Solid CopperWire construction to assure performance and quality
- Convenient sequential footage markings for usage tracking
- Plenum rated required in most commercial installations
- Ideal for data, digital video, broadband, and baseband analog video
- ETL verified TIA/EIA 568-C.2 for guaranteed performance
- UL 1863 compliant
- Available in blue, gray, green, white, and yellow
General Information
Specifications
-
ADI Part Number H2-CABP6VBL Brand Name ICC Manufacturer ICC Manufacturer Part Number ICCABP6VBL Packaged Quantity Box Product Name CAT 6, 500 UTP SLD CBL, 23G, 4P, CMP, Blue Product Type Network Cable Weight (Approximate) (g) 12700.586 Â
-
American Wire Gauge 23AWG Cable Rating Plenum Cable Type Category 6 Conductor Count 4 Device Supported Network Device Jacket Material PVC Number of Conductors 8 Number of Pairs 4 Shielding No Â
-
Data Transfer Rate 1 Gbit/s Data Transfer Rate (Bps) 134217728 Â
-
Cable Length 1000' Cable Length (mm) 304800 Color Blue Insulation Material FEP Material PVC Package Type Bulk Product Color Blue, Brown, Green, Orange, White/Blue, White/Brown, White/Green, White/Orange Product Material Bare Copper, Fluoropolymer, Polyester, Polyolefin Weight (Approximate) 28 lb Â
-
Limited Warranty Lifetime Â
-
Environmental Certification RoHS Environmentally Friendly Yes Features Attenuation to Crosstalk Ratio (ACR), Bendable, Flame Retardant, Minimized Near-End Crosstalk (NEXT), Power Sum Attenuation to Crosstalk Ratio (PSACR), Power-sum Near End Crosstalk (PSNEXT) Â
