Product Overview

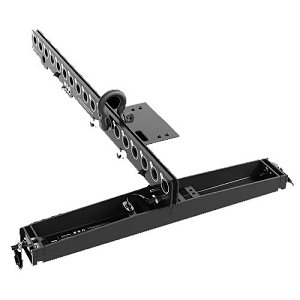

The SRX906LA AF is a lightweight and compact array frame for suspending SRX906LA arrays. The array frame was designed to work with single-point and front-back suspension methods. For single-point applications, the array frame can be used in conjunction with the VTX RC500 rotating clamp, allowing smaller SRX906LA arrays to be suspended from standard size trusses or pipes. The two-piece design is comprised of one extension bar and one spreader bar. The extension bar can extend to the front or rear of the frame to accommodate both uptilt and downtilt aiming options. Three connection points are available for attaching the extension bar to the spreader bar, allowing for precise control of shackle positioning for single-point applications. Support for third-party inclinometers is available using the included laser attachment bracket. The two parts can be collapsed easy for storage.
General Information
Name : JBL Professional SRX906LA AF Array Frame for SRX906LA , JBL Professional
Category : Pro Accessories & Mounts
UPC Code : 691991035708
Specifications
General Information
ADI Part Number : JF-JBLP3231M
Brand Name : JBL Professional
Manufacturer : Harman International Industries, Inc
Manufacturer Part Number : JBL-P3231MX
Product Model : SRX906LA AF
Product Name : Array Frame for SRX906LA
Product Series : JBL
Product Type : Mounting Frame
Weight (Approximate) (g) : 1859.729
Technical Information
Device Supported : Clamp Mount, Loudspeaker
Material : Steel
Audio
Shipping Weight (Approximate) (g) : 4989.52
Physical Characteristics
Application/Usage : Pipe, Truss
Depth : 25.8"
Depth (mm) : 655
Height : 3.9"
Height (mm) : 100
Weight (Approximate) : 4.10 lb
Width : 19.2"
Width (mm) : 488
Product Information
Finishing : Black Powder Coat
Miscellaneous
Compatibility : <p>JBL SRX906LA Dual 6.5" Powered Line Array Loudspeaker</p>
Features : Compact, Corrosion Proof, Lightweight
Package Contents : <ul> <li>1 x Spreader Bar </li> <li>1 x Extension Bar</li> <li>1 x 1/2-inch Shackle</li> <li>1 x Laser Bracket</li> <li>Laser Bracket Hardware</li> </ul>
TAA Compliant : No
