Product Overview

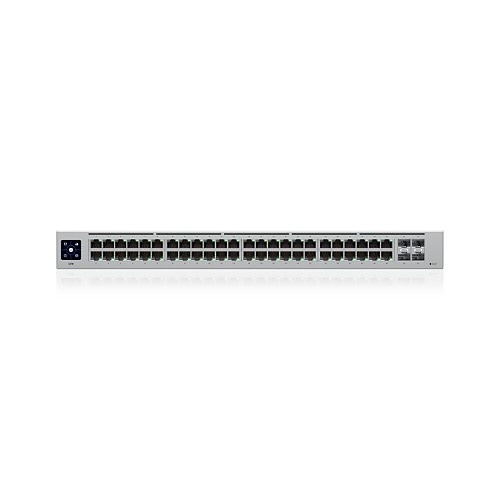

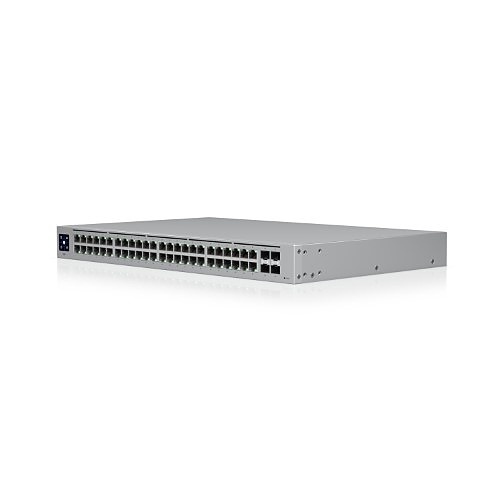

Quickly grow your business's network capacity for additional computers, storage, and other devices with the UniFi Switch 48 48-Port Gigabit Managed Network Switch from Ubiquiti. This Layer 2 rackmounted managed switch features 48 Gigabit Ethernet ports that include a 52 Gb/s switching capacity and 77.376 Mpps forwarding rate for smooth data transfers. There are also four Gigabit SFP ports for fiber uplinks. Use the convenient 1.3" LCM color touchscreen to quickly configure, monitor, and troubleshoot your connections. You can manage your switch from almost anywhere using the UniFi Network app, which also includes an augmented reality feature that provides you with a visual overview of your port connections. With its steel construction and fanless design, the UniFi Switch 48 operates silently to prevent disturbances to your office environment. Rackmount hardware is included.
General Information
Name : Ubiquiti USW-48 48-Port Standard 48 Layer 2 Switch , Ubiquiti
Category : Network Switches
UPC Code : 810010072481
Country of Origin : +1. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : KX-USW48
Brand Name : Ubiquiti
Manufacturer : Ubiquiti Inc.
Manufacturer Part Number : USW-48
Product Line : UniFi
Product Model : USW-48
Product Name : Ubiquiti Networks UniFi Switch 48 48-Port Gigabit Managed Network Switch with SFP
Product Series : USW
Product Type : Network Switch
Weight (Approximate) (g) : 4000
Technical Information
Material : SGCC Steel
Media Type Supported : Optical Fiber, Twisted Pair
Power Consumption : 40W
I/O Expansions
Expansion Slot Type : SFP (mini-GBIC)
Number of SFP Slots : 4
Number of SFP+ Slots : 4
Number of Total Expansion Slots : 4
Interfaces/Ports
Modular : Yes
Network (RJ-45) : Yes
Port/Expansion Slot Details : 4 x Gigabit Ethernet Expansion Slot, 48 x Gigabit Ethernet Network
Total Number of Network Ports : 48
Management & Protocols
Manageable : Yes
Media & Performance
Network Technology : 1000Base-T, 1000Base-X
Network & Communication
Ethernet Technology : 10 Gigabit Ethernet
Layer Supported : 2
Physical Characteristics
Weight (Approximate) : 8.8 lb
Power Description
Frequency : 50/60 Hz
Frequency (Hz) : 50/60
Input Voltage : 100-240V AC
Input Voltage (V AC) : 100-240
PoE (RJ-45) Port : No
Power Consumption (W) : 40
Power Source : AC, DC
Warranty
Limited Warranty : 1 Year
Miscellaneous
Environmentally Friendly : Yes
Features : 52 Gb/s Switching Capacity, 77.376 Mpps Forwarding Rate, Fanless, silent cooling
