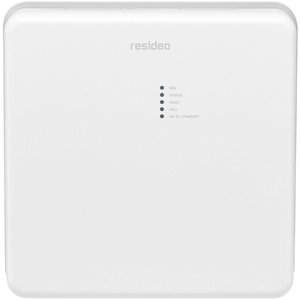

Resideo LTEM-PIA LTE CAT M1 Cellular and Internet Communicator for VISTA Control Panels, AT&T
Resideo LTEM-PIA LTE CAT M1 Cellular and Internet Communicator for VISTA Control Panels, AT&T
Resideo LTEM-PIA LTE CAT M1 Cellular and Internet Communicator for VISTA Control Panels, AT&T
LTEM-PI | LTEM-PIA
Please sign in to view pricing and availability and to add to cart.
Product Overview
This product is specified to meet UL 985 Standard For Household Fire Warning System Units. Resideo is committed to providing the best alarm communication solutions for the security industry. Our LTEM-PI Communicators utilize the latest LTE® technology specifically designed for loT devices to communicate with AlarmNet® .
The CAT-M1 LTE technology, used by leading carriers, has greater signal strength and power efficiency, improving performance underground and within structures. LTE CAT-M1 technology is available everywhere that current LTE networks reach with strong enough reception for consistent connections.
The LTEM-PI Communicators easily connect to customers' security system control panels and sends alarms and messages to AlarmNet for transfer to the central monitoring station.
Main Features
- Quick connection to Resideo control panels (see panel compatibility)
- Supports both ECP and Bus connections to compatible control panels
- Power supplied by a 9V DC power adapter (included)
- Supports dynamic or static IP addressing, and installs behind firewalls without compromising network security (provided that the communication path includes IP)
- Supports connection to the internet via Ethernet® cable
- Reports fire, burglary, and status messages via the internet
- Reports messages via cell as backup to internet reporting (provided that the communication path includes cell)
- Allows uploading and downloading of VISTA control panel data
- Resideo Total Connect® 2.0 Remote Services allow the end user to access their security system from their computer via the website. Availability of this service is controlled by the dealer via the web-based programming tool on the AlarmNet 360® website
- Supports remote control of alarm systems via Resideo Total Connect Remote Services feature
General Information
Specifications
-
ADI Part Number LTEM-PIA Brand Name Resideo Card Type 0% RH - non-condensing Manufacturer Resideo Manufacturer Part Number LTEM-PIA Product Line VISTA Product Model LTEM-PI Product Name LTE Cat M1 Cellular and Internet Communicator, AT&T Product Series LTEM-PIA Product Type Burglar Alarm Communicator
-
Cellular Generation 4G LTE Connectivity Technology Wireless Wireless LAN Yes
-
Battery Built-in Yes Battery Chemistry Lead Acid
-
Communication Technology Internet, Radio Ethernet Yes Sensor Connectivity Wired, Wireless
-
Application/Usage Internet Communications, Radio Communications Color White Color Family White Depth 2.2" Height 9.1" Weight (Approximate) 3.31 lb Width 9.1"
-
Input Voltage 9V DC
-
Installation Type Professional Install
-
Compatibility VISTA-128BP, VISTA-128BPE, VISTA-128BPT, VISTA-15P, VISTA-20P, VISTA-21iP w/internal communicator disabled, VISTA-250BP, VISTA-250BPE, VISTA-250BPT Features 256-bit AES Encryption - Advanced encryption standard used for secure communications., AlarmNet360™ Online Management Platform - AlarmNet360 Account Management https://services.alarmnet.com/AlarmNet360 — Remote programming and diagnostics to improve business efficiencies and reduce truck rolls., Diagnostic - LEDs Provide signal strength and status indications., FOTA Firmware Upgrading - Complete over-the-air firmware upgrading capability. Provides remote service management ability., Full Contact ID - Contact ID reporting using ECP mode with compatible Honeywell Home control panels., Integration - Quick and easy installation of cellular communicator for VISTA® and LYNX controls., QOS - Quality of Service diagnostics via AlarmNet supply vital information including when a message was received, battery voltage, input voltage, signal strength and message path., Remote Services Capability - Optional Resideo Total Connect Remote Services — Boost RMR while providing on-the-go security and home control, video viewing, and real-time alerts, anytime, anywhere, on any PC or smart device., Upload/Download - Available with select Honeywell Home control panels. Requires Compass version 1.5.8.54a or higher. Package Contents - LTE Cat M1 Cellular and Internet Communicator, AT&T
- 9VDC Power Adapter
