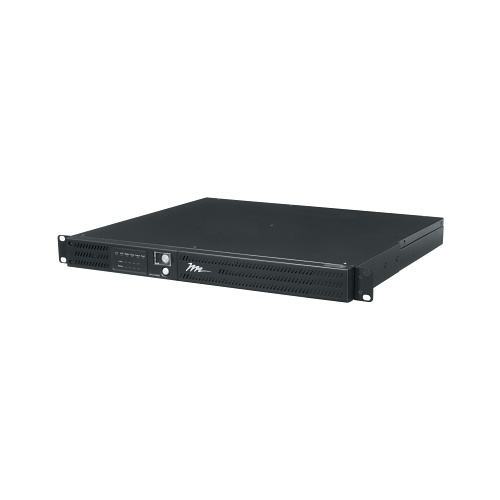

Middle Atlantic UPS-S1000R Select UPS Series Backup Power, 1000VA, RU, Black
UPS-S1000R|NO-UPSS1000R
Battery Capacity: 1000VA
Middle Atlantic UPS-S1000R Select UPS Series Backup Power, 1000VA, RU, Black
UPS-S1000R|NO-UPSS1000R
Battery Capacity: 1000VA
Middle Atlantic by Legrand
Middle Atlantic UPS-S1000R Select UPS Series Backup Power, 1000VA, RU, Black
UPS-S1000RÂ |Â NO-UPSS1000R
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Select Series UPS models are available in compact form factors when space is at a premium, and in a wide range of capacities to support a wide range of installations. All models are available with web-enabled IP control.
Main Features
- Bank control of outlets for simple system reboot
- Simulated sine wave output waveform
- 8ms transfer time
- Automatic Voltage Regulation
- Non-critical load shedding
- Surge protection and EMI filtering
- LED status indicators
- Battery pack easily replaced via front panel
General Information
Name: Middle Atlantic UPS-S1000R Select UPS Series Backup Power, 1000VA, RU, Black
Category: Middle Atlantic by Legrand, Batteries & Power Supplies, Pro AV, Power Management, Commercial Power Products, UPS, UPS
UPC Code: 656747237188
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number NO-UPSS1000R Brand Name Middle Atlantic by Legrand Manufacturer Legrand Group Manufacturer Part Number UPS-S1000R Product Line Select Product Model UPS-S1000R Product Name Select UPS-S1000R 1000VA Rack-mountable UPS Product Type Standby UPS Weight (Approximate) (g) 14514.956 Â
-
AVR Yes Backup/Run Time (Full Load) 3 Minute Backup/Run Time (Full Load) (Second) 180 Backup/Run Time (Half Load) 13 Minute Backup/Run Time (Half Load) (Second) 780 Battery Size 6V EMI/RFI Noise Filter Yes Load Capacity (VA) 1000 VA Number of Batteries 4 Number of Critical Load Outlets 3 Output Voltage 120V AC Output Voltage (V AC) 120 Overload Protection Yes Receptacle Detail 6 x NEMA 5-15R Receptacle Type NEMA 5-15R Transfer Time 8 ms Transfer Time (Second) 0.008 USB (HID Compliant) Port Yes Â
-
Battery Capacity 1000VA Battery Capacity (mAh) 7000 Replaceable Battery Yes Â
-
Output Voltage (V) 120 Surge Energy Rating (J) 1030 Â
-
Maximum Operating Temperature 104°F (40°C) Maximum Operating Temperature (°F) 104 Operating Humidity 0% - 95% Â
-
EPO Port Yes Â
-
Depth 15.3" Depth (mm) 388.874 Form Factor Rack Mount Height 1.7" Height (mm) 43.942 Rack Height 1U Weight (Approximate) 32 lb Width 19" Width (mm) 482.6 Â
-
Input Voltage 120V AC Input Voltage (V AC) 120 Input Voltage Range 90 V AC - 140 V AC Plug/Connector Type NEMA 5-15P Surge Energy Rating 1030 J Waveform Type Simulated Sine Wave Â
-
Load Capacity (VA) (W) 1000.000 Load Capacity (W) 1000.000 Â
-
Limited Warranty 3 Year Â
-
Environmental Certification EU RoHS, GREENGUARD Environmentally Friendly Yes Package Contents - Select UPS-S1000R 1000VA Rack-mountable UPS
- 10' Power Cord
TAA Compliant No Â
