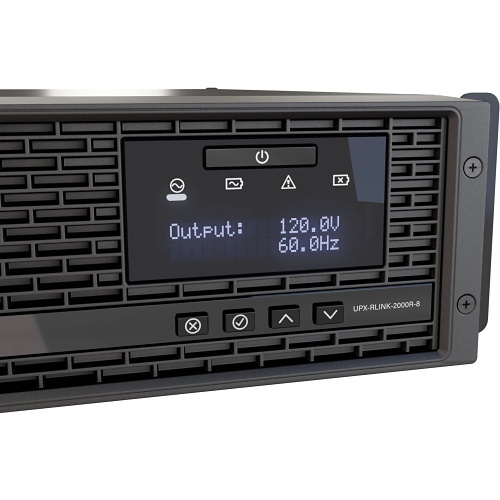

Middle Atlantic UPX-RLNK-2000R-8 NEXSYS UPS Series Backup Power System for UPX and RLNK, 8-Outlets with Individual Control, 2000VA, 20A, Black, (Replaces UPS-2200R-8IP)
UPX-RLNK-2000R-8|NO-UPXRLNK20
Middle Atlantic UPX-RLNK-2000R-8 NEXSYS UPS Series Backup Power System for UPX and RLNK, 8-Outlets with Individual Control, 2000VA, 20A, Black, (Replaces UPS-2200R-8IP)
UPX-RLNK-2000R-8|NO-UPXRLNK20
Middle Atlantic by Legrand
Middle Atlantic UPX-RLNK-2000R-8 NEXSYS UPS Series Backup Power System for UPX and RLNK, 8-Outlets with Individual Control, 2000VA, 20A, Black, (Replaces UPS-2200R-8IP)
UPX-RLNK-2000R-8Â |Â NO-UPXRLNK20
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
NEXSYS is built on a promise that we've kept for over two decades - more than half the life of the company - that our power products are designed, engineered, and built for AV. It's one thing to say it, it's another thing to prove it. And our NEXSYS Line Interactive UPSs prove it, we promise. They are built with premium components to keep your AV systems running as smoothly as you'd expect.
Main Features
- Experience higher efficiency with lower energy cost
- NEMA 5-20P plug/connector type for convenient usage with added dependability
- NEMA 5-20R receptacle type offers maximum safety, convenience, and increased usability
- 120 V AC input voltage for maximum feasibility and added productivity
- 110 V AC output voltage for optimal performance with maximum feasibility
- Rack-mountable line-interactive ups allows maximum space utilization with easy and convenient access to the keyboard
- Energy Star Certified
- 2000VA, 20 Amp
General Information
Name: Middle Atlantic UPX-RLNK-2000R-8 NEXSYS UPS Series Backup Power System for UPX and RLNK, 8-Outlets with Individual Control, 2000VA, 20A, Black, (Replaces UPS-2200R-8IP)
Category: Middle Atlantic by Legrand, Batteries & Power Supplies, Power Management, UPS
UPC Code: 656747395659
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number NO-UPXRLNK20 Brand Name Middle Atlantic by Legrand Manufacturer Legrand Group Manufacturer Part Number UPX-RLNK-2000R-8 Product Line NEXSYS Product Model UPX-RLNK-2000R-8 Product Name NEXSYS 2000VA Rack-mountable UPS Product Series UPX Product Type Line-interactive UPS Â
-
AVR Yes Hot Swappable Yes Output Voltage 110V AC, 120V AC, 127V AC Receptacle Detail 8 x NEMA 5-20R Receptacle Type NEMA 5-20R Â
-
DC System Voltage 48 V DC Â
-
Output Voltage (V) 110, 120, 127 Â
-
Maximum Operating Temperature 104°F (40°C) Â
-
Serial Port Yes Â
-
ADI Part Number Replaces NO-UPS220R8I Model Number Replaces UPS-2200R-8IP Â
-
Color Black Color Family Black Depth 22" Form Factor Rack Mount Height 3.5" Product Color Black Rack Height 2U Weight (Approximate) 63.05 lb Width 19" Â
-
Input Voltage 120V AC Plug/Connector Type NEMA 5-20P Waveform Type Pure Sine Wave Â
-
Load Capacity (VA) (W) 2000.000 Load Capacity (W) 2000.000 Â
-
Additional Warranty Information 2 Years Battery Limited Warranty 3 Year Â
-
Energy Star Yes Environmental Certification REACH, RoHS Environmentally Friendly Yes Package Contents - 1000VA Rack-mountable UPS
- 6' (1.8m) IEC Power Cord
- Network Card
TAA Compliant No Â
