Panduit DNF14250FIBC Splice Connector, Nylon Fully Insulated Disconnect
DNF14250FIBC|P9-DNF14250F
Panduit DNF14250FIBC Splice Connector, Nylon Fully Insulated Disconnect
DNF14250FIBC|P9-DNF14250F
Panduit
Panduit DNF14250FIBC Splice Connector, Nylon Fully Insulated Disconnect
DNF14250FIBCÂ |Â P9-DNF14250F
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

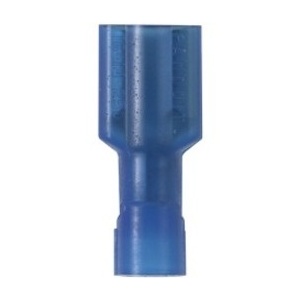

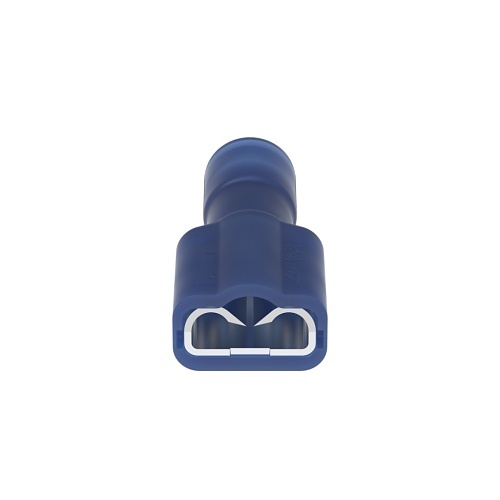

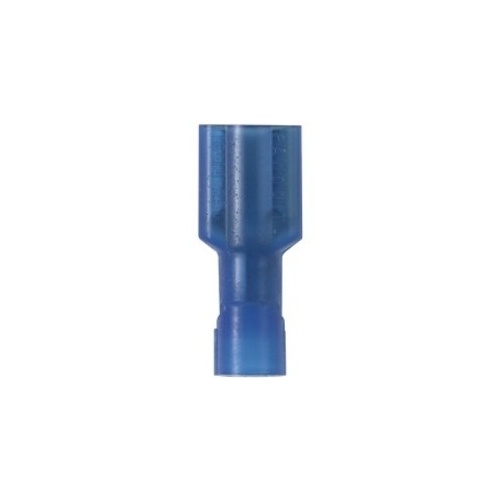

The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a blue, nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.84" (21.3 mm) long and 0.35" (8.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.
Main Features
- Vibration resistant female disconnect
- Made of brass and tin-plated
- Fully insulated in blue, nylon housing
- Tab size: 0.250 x 0.032" (6.3 x 0.8 mm)
- Supports wire range: 16-14 AWG (1.5-2.5 mm²)
- Dimensions: 0.84" (21.3 mm) long, 0.35" (8.9 mm) wide
- Funnel entry barrel configuration
- Butted seam barrel
- Packaged in bottles of 100
General Information
Name: Panduit DNF14250FIBC Splice Connector, Nylon Fully Insulated Disconnect
Category: Panduit, Data Comm & Networking, Cable Connectors, Splice Connectors
UPC Code: 074983827176
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number P9-DNF14250F Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number DNF14-250FIB-C Packaged Quantity 100 Product Name Terminal Connector Product Type Terminal Connector Â
-
Connector Details 1 x Terminal Female Connector Plating Tin Â
-
Connector Type Terminal Number of Contacts 10 Â
-
Color Blue Diameter (mm) 4.1 Product Color Blue Product Material Brass, Nylon Width 0.4" Width (mm) 8.89 Â
-
Diameter 0.2" Length 0.8" Length (mm) 21.336 Â
-
Environmentally Friendly Yes Features Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost, Fully insulated design provides protection from electrical shorts, UL and CSA rated up to 600 V per UL 310 Â
