Product Overview

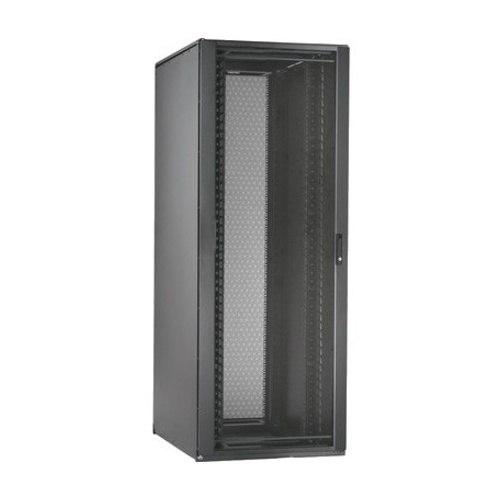

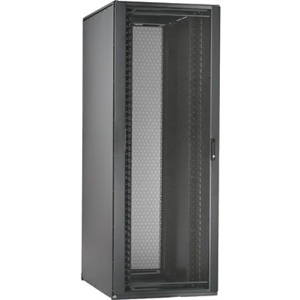

The Net-Access™ N-Type Cabinets shall consist of metal frames available in 800mm (31.5") widths, 1067mm (42.0") and 1219mm (48.0") depths, and multiple heights. The top of cabinet includes molded edge protection and snap-in covers pre-installed in cable entry openings to prevent air leakage. Cabinets shall include front dual hinge doors or single hinge doors with 69% open perforation and rear split doors. Cabinets shall include front and rear cable management fi ngers. The entire cabinet shall be fully electrically bonded, including equipment rails, door and side panels. Single point bonding locations shall be available at the top and bottom of each cabinet. Cabinets shall have a 1360kg (3000 lbs.) load rating and 1020kg (2250 lbs.) rolling load rating.
General Information
Name : Panduit N8512B Net-Access Series, N-Type IP Cabinet, 45-RU, Black , Panduit
Category : Rack Cabinets & Frames
UPC Code :
Specifications
General Information
ADI Part Number : P9-N8512B
Brand Name : Panduit
Manufacturer : PANDUIT CORP
Manufacturer Part Number : N8512B
Product Line : Net-Access
Product Model : N8512B
Product Name : Net-Access N8512B Rack Cabinet
Product Series : Net-Access
Product Type : Rack Cabinet
Physical Characteristics
Color Family : Black
Depth : 42"
Depth (mm) : 1066.8
Dynamic/Rolling Weight Capacity : 2250 lb
Dynamic/Rolling Weight Capacity (g) : 1020582.833
Form Factor : Floor Standing
Height : 84"
Height (mm) : 2133.6
Maximum Weight Capacity : 3000 lb
Maximum Weight Capacity (g) : 1360777.11
Product Color : Black Powder Coat
Product Material : Metal
Rack Height : 45U
Rack Width : 19"
Rack Width (mm) : 482.6
Width : 31.5"
Width (mm) : 800.1
Miscellaneous
Assembly Required : No
Environmentally Friendly : Yes
Features : Cable Management, Perforated Door
