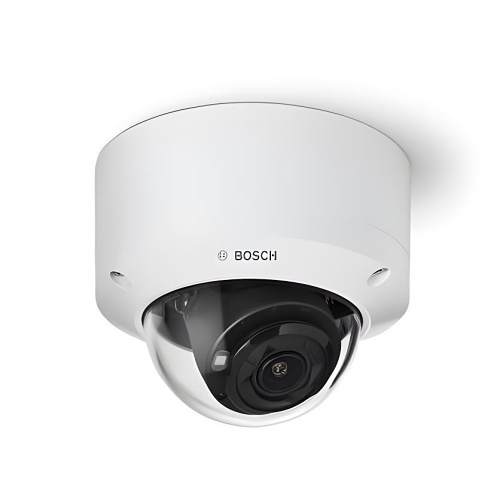

Bosch NDV-5702-AL-GOV 2MP Fixed Dome Camera, HDR, 3.2-10.5mm Lens, IR I/O
NDV-5702MP-AL|PB-N572ALG
Bosch NDV-5702-AL-GOV 2MP Fixed Dome Camera, HDR, 3.2-10.5mm Lens, IR I/O
NDV-5702MP-AL|PB-N572ALG
Bosch
Bosch NDV-5702-AL-GOV 2MP Fixed Dome Camera, HDR, 3.2-10.5mm Lens, IR I/O
NDV-5702MP-ALÂ |Â PB-N572ALG
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The camera is a versatile and professional surveillance camera for indoor monitoring. It delivers exceptional image quality, starlight performance and High Dynamic Range at resolution HD 1080p for highly detailed image for demanding security and surveillance network requirements. Built-in Intelligent Video Analytics Pro (IVA Pro) enriches full situational awareness and triggers relevant alerts. The camera offers a 1/2.8’’ sensor and HDR technology at HD 1080p resolution with a built-in active infrared illuminator that provides high performance in extreme low-light environments. The modular structure design uses a click and rotate mechanism on mounting plate or base that requires no hardware to secure the camera to housing for fast installation, including compatibility with various mounting options.
Main Features
- 1080p60 for highly detailed images
- Starlight camera technology with excellent lowlight performance
- IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
- High Dynamic Range to see every detail in both bright and dark areas of the scene
- Built-in intelligent IR illuminator with up to 45Â m (148Â ft) viewing distance
General Information
Name: Bosch NDV-5702-AL-GOV 2MP Fixed Dome Camera, HDR, 3.2-10.5mm Lens, IR I/O
Category: Bosch, Video Surveillance, IP Cameras, Dome Cameras
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number PB-N572ALG Brand Name Bosch Manufacturer Bosch Manufacturer Part Number NDV-5702MP-AL Product Model NDV-5702MP-AL Product Name NDV-5702 mP-AL Fixed dome2 mPMP HDR3 mP.2 mP-10 mP.5 mPmm IR I/O Product Type Camera Â
-
Effective Camera Resolution 2MP Field of View H:105°-31°, V:57°-18° Lens Type Varifocal Maximum Frame Rate 60fps Minimum Focal Length 3-2 mm Â
-
Wide Dynamic Range Yes Â
-
Effective Camera Resolution (Pixel) 2000000 Â
-
Maximum Operating Temperature (°F) 122 Minimum Operating Temperature (°F) -4 Â
-
Focal Length 3.2-10.5 mm Â
-
Color Black, White Form Factor Dome Height 4"-8" Weight (Approximate) 2-03 lb Â
-
Diameter 5"-83" Mount Type Surface Mount Â
-
Maximum Frame Rate (fps) 60 Â
-
Impact Protection Rating IK10 Ingress Protection Rating IP54 Package Contents 1 8 -pin terminal block, 1 Adapter plate for cable conduit (Ø1 /2 " / M20 ), 1 Adapter plate for cable conduit (Ø3 /4 " / M25 ), 1 FLEXIDOME Indoor5100 i IR -2 camera, 1 Mount plate, 1 Quick Installation Guide, 1 RJ45 guider, 1 Safety information, 1 T-20 security Torx Allen key TAA Compliant Yes Â
