Product Overview

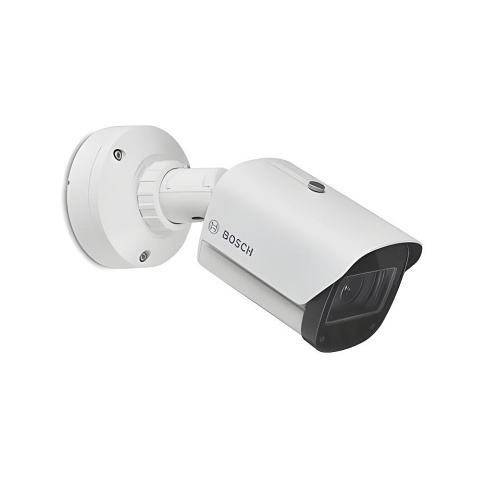

Discover the Bosch NBE-7704-ALX Dinion 7100i, a top-tier 8MP network camera designed for both indoor and outdoor surveillance. This white varifocal camera features a 5.9-13 mm lens, offering 2.2x optical zoom to bring subjects closer and ensure detailed coverage. Experience real-time monitoring with a 4K recording format and up to 3840 x 2160 resolution. The camera boasts up to 262.47 ft of night vision, utilizing both infrared and color capabilities for enhanced visibility in low light conditions. Its varifocal lens and PoE power source enhance reliability and energy efficiency, while the multi-view stream feature maximizes convenience. Ideal for securing areas requiring dependable identification from a distance, this camera ensures exceptional video quality and surveillance productivity. Enhance your security setup with Bosch today!
Main Features
- For remote surveillance needs, this network camera is best suited
- Up to 3840 x 2160 resolution for surveillance in real-time
- 13 mm maximum focal length for dependable identification distances with better coverage
- 2.2x optical zoom for bringing the subject closer for maximum surveillance efficiency
- Up to 262.47 ft of night vision
- 4K recording format for exceptional video quality with maximum productivity
- Infrared/Color night vision type for better feasibility and increased surveillance productivity
- Varifocal lens type to ensure maximum surveillance productivity with added feasibility
- PoE power source type for your network camera better reliance and maximum energy dependability
- Multi-view Stream feature for maximum efficiency and convenience
General Information
Name: Bosch NBE-7704-ALX Bullet IP Camera
Category: Bosch, Video Surveillance, IP Cameras, Bullet Cameras
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number PB-NBE7704AX Brand Name Bosch Manufacturer The Bosch Group Manufacturer Part Number NBE7704ALX Product Line Dinion Product Model NBE-7704-ALX Product Name Dinion 7100i NBE-7704-ALX Network Camera Product Series 7100i Product Type Network Camera Â
-
Connectivity Technology Wired Effective Camera Resolution 8MP HD Recording Yes Lens Type Varifocal Maximum Focal Length (mm) 13 Maximum Frame Rate 30 fps Minimum Focal Length 5.90 mm Night Vision Yes Night Vision Type Infrared/Color Optical Zoom 2.2x Â
-
Night Vision Distance 262.47 ft Night Vision Distance (mm) 80000 Wide Dynamic Range Yes Â
-
Color Supported Color Effective Camera Resolution (Pixel) 8000000 Maximum Video Resolution 3840 x 2160 Â
-
Maximum Operating Temperature 140°F (60°C) Maximum Operating Temperature (°F) 140 Minimum Operating Temperature -58°F (-50°C) Minimum Operating Temperature (°F) -58 Â
-
Network (RJ-45) Yes Â
-
Focal Length 5.9-13 mm Lens Included Yes Maximum Focal Length 13 mm Â
-
Remote Management Yes Â
-
Color White Durability Corrosion Resistant, Vandal Resistant, Weather Proof Form Factor Bullet Â
-
Input Voltage 12V, 24V Â
-
Mount Type Ceiling Mount, Wall Mount Â
-
Minimum Focal Length (mm) 5.9 Â
-
Recording Formats 4K Storage Type Memory Card Â
-
Maximum Frame Rate (fps) 30 Â
-
Features Audio Detection, Day/Night, Motion Detection, Multi-view Stream, Privacy Masking, SD Card Local Storage, Tamper Detection, Video Management System Impact Protection Rating IK10 Indoor/Outdoor Indoor, Outdoor Ingress Protection Rating IP66, IP67, IP6K9K Â
