Hanwha PNM-C12083RVD P-Series 6MP Outdoor IR Vandal Dome IP Camera, 3.54-6.69mm Lens, White
PNM-C12083RVD|SQ-C12083RVD
Hanwha PNM-C12083RVD P-Series 6MP Outdoor IR Vandal Dome IP Camera, 3.54-6.69mm Lens, White
PNM-C12083RVD|SQ-C12083RVD
Hanwha Vision
Hanwha PNM-C12083RVD P-Series 6MP Outdoor IR Vandal Dome IP Camera, 3.54-6.69mm Lens, White
PNM-C12083RVDÂ |Â SQ-C12083RVD
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

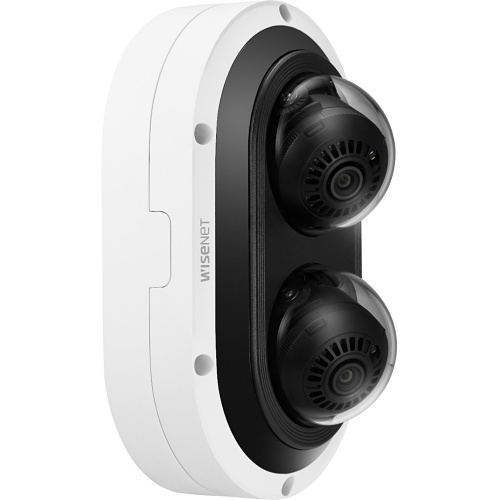

The PNM-C12083RVD from Samsung is a 6 megapixel x 2 AI, IR outdoor dome camera with 3.54-6.69mm lens.
Main Features
- Analytics events based on AI engine: Classified object(Person/Face/Vehicle/License plate)
- WiseNRâ…¡, Auto prefer shutter control, WiseStreamâ…¢, extremeWDR (120 dB)
- Maximum 3328x1872 resolution
- Maximum 15fps@6M
- Color: 0.16lux(F1.67, 1/30sec, 30IRE), 0 Lux (IR LED on)
- 3.54~6.69mm motorized varifocal, 78° tilt angle
- IR viewable length: IR 25m(82ft) based on scene
- TPM 2.0(FIPS 140-2 certified)
- IP66, IK10, NEMA4X
General Information
Name: Hanwha PNM-C12083RVD P-Series 6MP Outdoor IR Vandal Dome IP Camera, 3.54-6.69mm Lens, White
Category: Hanwha Vision, Video Surveillance, IP Cameras, Panoramic Cameras, ADI Pro Rewards
UPC Code: 8801089217400
Country of Origin: Korea. Country of origin is subject to change.
Specifications
-
ADI Part Number SQ-C12083RVD Brand Name Hanwha Vision Manufacturer Hanwha Group Manufacturer Part Number PNM-C12083RVD Product Line WiseNet Product Model PNM-C12083RVD Product Name 6MP X 2 AI, IR Outdoor Dome Product Series P Product Type Network Camera Â
-
Connectivity Technology Wired Effective Camera Resolution 6MP Field of View H: 95.08(Wide)~47.64(Tele) V: 50.78(Wide)~26.7(Tele) D: 112.6(Wide)~54.74(Tele) HD Recording Yes Lens Type Varifocal Maximum Aperture f/1.67 Maximum Frame Rate 15 fps Minimum Focal Length 3.54 mm Night Vision Yes Night Vision Type Infrared Optical Zoom 1.9x Â
-
Night Vision Distance 82.02 ft Wide Dynamic Range Yes Â
-
Ingress Protection Rating IP66 NDAA Compliant Yes TAA Compliant Yes Â
-
Color Supported Color Maximum Video Resolution 1600 x 1200 Number of Sensors 2 Â
-
Maximum Operating Temperature 131°F (55°C) Minimum Operating Temperature -40°F (-40°C) Operating Humidity 95% Â
-
Longest Shutter Speed 1/5 Second Shortest Shutter Speed 1/12000 Second Â
-
Network (RJ-45) Yes Â
-
Focal Length 3.54-6.69 mm Lens Included Yes Maximum Focal Length 6.69 mm Minimum Aperture f/2.64 Â
-
Remote Management Yes Â
-
Color White Color Family White Depth 5.3" Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof Form Factor Dome Height 3.7" Product Color White Weight (Approximate) 2.93 lb Width 8.5" Â
-
Length 5.3" Mount Type Ceiling Mount, Conduit Mount, Corner Mount, Gang Box Mount, Gooseneck Mount, Pendant Mount, Pole Mount, Wall Mount Â
-
Recording Formats HD Storage Type Memory Card Â
-
Features Back Light Compensation (BLC), Day/Night, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, PTZ, SD Card Local Storage, White Balance, Wide Dynamic Range Impact Protection Rating IK10 Indoor/Outdoor Outdoor Â
