Product Overview
Wisenet Q series cameras are affordable products equipped with features essential to the creation of a safe and secure environment. Being able to deliver sharp and clear images in 5MP makes it an ideal product in securing small to medium sized spaces such as retail or banking spaces and offices.
General Information

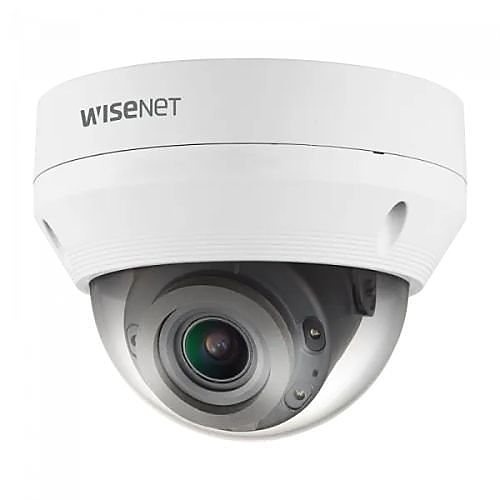

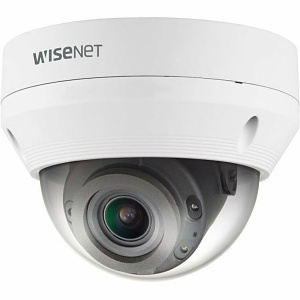

Name : Hanwha QNV-8080R/KME Series 5MP IR Vandal Dome IP Camera, 3.2-10mm Varifocal Lens, White, TAA Compliant , Hanwha Vision
Category : Dome Cameras
UPC Code : 8801089188304
Country of Origin : Korea. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : SQ-QNV808KME
Brand Name : Hanwha Vision
Manufacturer : Hanwha Group
Manufacturer Part Number : QNV-8080R/KME
Product Model : QNV-8080R
Product Name : 5 MP Network IR Vandal Resistant Dome Camera with Varifocal Lens
Product Series : Q
Product Type : Network Camera
Weight (Approximate) (g) : 700
Technical Information
Connectivity Technology : Wired
Effective Camera Resolution : 5MP
Field of View : H: 100.3°(Wide)~31.2°(Tele) / V: 72.3°(Wide)~23.5°(Tele) / D: 133.1°(Wide)~38.8°(Tele)
HD Recording : Yes
Lens Type : Varifocal
Maximum Aperture : f/1.6
Maximum Focal Length (mm) : 10
Maximum Frame Rate : 30 fps
Minimum Focal Length : 3.20 mm
Night Vision : Yes
Night Vision Type : Infrared
Optical Zoom : 3.1x
Camera
Night Vision Distance : 98.43 ft
Night Vision Distance (mm) : 30000
Wide Dynamic Range : Yes
Display & Graphics
Color Supported : Color
Effective Camera Resolution (Pixel) : 5000000
Maximum Video Resolution : 1600 x 1200
Environmental Conditions
Maximum Operating Temperature : 131°F (55°C)
Maximum Operating Temperature (°F) : 131
Minimum Operating Temperature : -22°F (-30°C)
Minimum Operating Temperature (°F) : -22
Operating Humidity : 90%
Exposure
Longest Shutter Speed : 1/5 Second
Shortest Shutter Speed : 1/12000 Second
Interfaces/Ports
Network (RJ-45) : Yes
Lens
Focal Length : 3.2-10 mm
Lens Included : Yes
Maximum Focal Length : 10 mm
Minimum Aperture : f/2.9
Network & Communication
Remote Management : Yes
Physical Characteristics
Color : White
Color Family : White
Diameter (mm) : 137
Form Factor : Dome
Product Color : White
Weight (Approximate) : 1.54 lb
Product Information
Diameter : 5.4"
Mount Type : Ceiling Mount, Gooseneck Mount, Hanging Mount, Parapet Mount, Pendant Mount, Wall Mount
Projection Lens
Minimum Focal Length (mm) : 3.2
Storage
Storage Type : Memory Card
Video
Analog Video Signal Format : CVBS
Maximum Frame Rate (fps) : 30
Warranty
Limited Warranty : 3 Year
Miscellaneous
Features : Audio Detection, Back Light Compensation (BLC), Day/Night, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, White Balance, Wide Dynamic Range
Impact Protection Rating : IK10
Ingress Protection Rating : IP66
TAA Compliant : Yes
