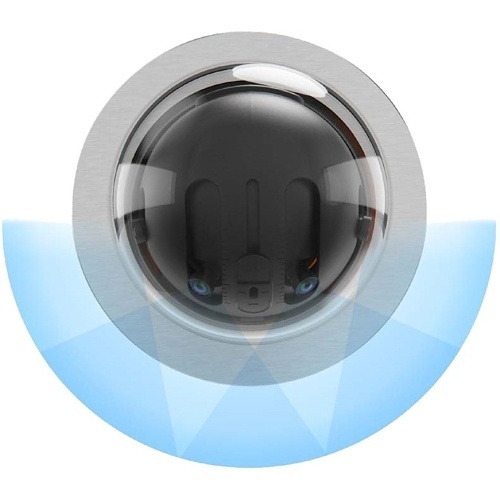

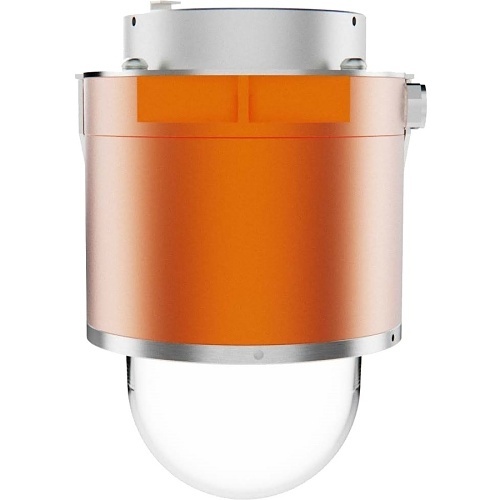

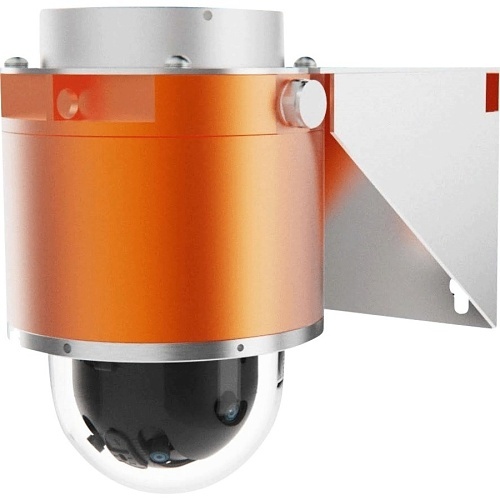

Product Overview
The TNM-P9022EPT3-Z is a cFMus Class I/II/III, Division 1 (Groups: B, C, D, E, F, G) and IECEx & ATEX Zone 1/21 (IIB+H2/IIIC) camera system. The housing is proudly designed and manufactured in the USA to exceed the highest global industry standards for safe operation in hazardous or potentially combustible environments and in the most extreme weather conditions.
General Information
Name : Hanwha TNM-P9022EPT3-Z 4-Channel 2MP Panoramic Camera, Stitched, Explosion Proof , Hanwha Vision
Category : Panoramic Cameras
UPC Code : 849688018774
Country of Origin : United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : SQ-TNMP9022E
Brand Name : Hanwha Vision
Manufacturer : Hanwha Group
Manufacturer Part Number : TNM-P9022EPT3-Z
Product Model : TNM-P9022EPT3-Z
Product Name : Explosion Proof Panoramic camera
Product Series : T
Product Type : Network Camera
Weight (Approximate) (g) : 12247
Technical Information
Connectivity Technology : Wired
Effective Camera Resolution : 8MP
Field of View : H: 209°/180°, V:83°
HD Recording : Yes
Lens Type : Fixed
Maximum Aperture : f/1.6
Maximum Focal Length (mm) : 2.8
Maximum Frame Rate : 30 fps
Camera
Wide Dynamic Range : Yes
Display & Graphics
Color Supported : Color
Effective Camera Resolution (Pixel) : 8300000
Maximum Video Resolution : 1600 x 1200
Number of Sensors : 4
Environmental Conditions
Maximum Operating Temperature : 131°F (55°C)
Maximum Operating Temperature (°F) : 131
Minimum Operating Temperature : -40°F (-40°C)
Minimum Operating Temperature (°F) : -40
Operating Humidity : 95%
Exposure
Longest Shutter Speed : 2 Second
Shortest Shutter Speed : 1/12000 Second
Interfaces/Ports
Network (RJ-45) : Yes
Lens
Lens Included : Yes
Maximum Focal Length : 2.80 mm
Network & Communication
Remote Management : Yes
Physical Characteristics
Durability : Corrosion Resistant, Damage Resistant, Dust Resistant, Explosion Proof, Water Resistant, Weather Resistant
Height : 13.7"
Height (mm) : 347.269
Weight (Approximate) : 27 lb
Width : 8.6"
Width (mm) : 218.186
Projection Lens
Minimum Focal Length (mm) : 2.8
Storage
Storage Type : Memory Card
Video
Maximum Frame Rate (fps) : 30
Warranty
Limited Warranty : 3 Year
Miscellaneous
Features : Audio Compression, Audio Detection, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Digital Noise Reduction, Enter/Exit Detector, Highlight Compensation (HLC), Microphone In, Motion Detection, Privacy Masking, PTZ, SD Card Local Storage, Tamper Detection, Video Content Analytics, Wide Dynamic Range
Ingress Protection Rating : IP66, IP67
