Product Overview
- 2MP resolution
- 2.8~12mm (4.3x) motorized varifocal
- Color: 0.01Lux(F1.4, 1/30sec, 30IRE), 0 Lux (IR LED on)
- Maximum 120 fps (H.265/H.264)
- WiseIR: IR viewable length 50 m (164.04 ft)
- Day & Night (ICR), extremeWDR (150 dB)
- Hard-coated dome bubble
- WiseNRII (Based on AI engine), WiseStreamIII (Based on AI engine)
- Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate) IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
- Analytics events : Defocus detection, Motion detection, Tampering, Fog detection Audio detection, Sound classification, Shock detection, Appear/Disappear
- IP66/IP67/IP6K9K, NEMA4X, IK10+
General Information

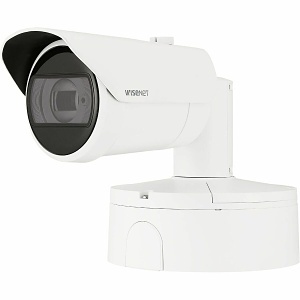

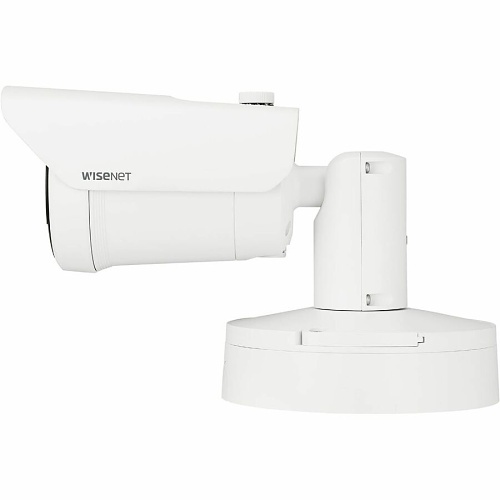

Name : Hanwha XNO-6083R/KEX Series 2MP WDR IR Bullet IP Camera, 2.8-12mm Motorized Varifocal Lens, White, TAA Compliant , Hanwha Vision
Category : Bullet Cameras
UPC Code : 8801089207685
Country of Origin : Korea. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : SQ-XO683RKEX
Brand Name : Hanwha Vision
Manufacturer : Hanwha Group
Manufacturer Part Number : XNO-6083R/KEX
Product Model : XNO-6083R
Product Name : 2MP IR Bullet AI Camera
Product Series : X
Product Type : Network Camera
Weight (Approximate) (g) : 2200
Technical Information
Connectivity Technology : Wired
Effective Camera Resolution : 2MP
Field of View : H : 119.5°(Wide) ~ 27.9°(Tele) V : 62.8°(Wide) ~ 15.7°(Tele) D : 142.1°(Wide) ~ 32.0°(Tele)
HD Recording : Yes
Lens Type : Varifocal
Maximum Aperture : f/1.4
Maximum Focal Length (mm) : 12
Maximum Frame Rate : 120 fps
Minimum Focal Length : 2.80 mm
Night Vision : Yes
Night Vision Type : Infrared
Optical Zoom : 4.3x
Camera
Night Vision Distance : 164.04 ft
Night Vision Distance (mm) : 50000
Wide Dynamic Range : Yes
Display & Graphics
Color Supported : Color
Effective Camera Resolution (Pixel) : 2000000
Maximum Video Resolution : 1600 x 1200
Environmental Conditions
Maximum Operating Temperature : 140°F (60°C)
Maximum Operating Temperature (°F) : 140
Minimum Operating Temperature : -58°F (-50°C)
Minimum Operating Temperature (°F) : -58
Operating Humidity : 90%
Exposure
Longest Shutter Speed : 2 Second
Shortest Shutter Speed : 1/12000 Second
Interfaces/Ports
Network (RJ-45) : Yes
Lens
Focal Length : 2.8-12 mm
Lens Included : Yes
Maximum Focal Length : 12 mm
Minimum Aperture : f/3.6
Network & Communication
Remote Management : Yes
Physical Characteristics
Color : White
Color Family : White
Diameter (mm) : 93.4
Form Factor : Bullet
Product Color : White
Weight (Approximate) : 4.85 lb
Power Description
Input Voltage : 12V DC
Input Voltage (V DC) : 12
Product Information
Diameter : 3.7"
Mount Type : Desk Mount, Rack Mount, Wall Mount
Projection Lens
Minimum Focal Length (mm) : 2.8
Storage
Recording Formats : Full HD
Storage Type : Memory Card
Video
Analog Video Signal Format : CVBS
Maximum Frame Rate (fps) : 120
Warranty
Limited Warranty : 3 Year
Miscellaneous
Features : Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Highlight Compensation (HLC), Motion Detection, Privacy Masking, Wide Dynamic Range
Impact Protection Rating : IK10, IK10+
Ingress Protection Rating : IP66, IP67, IP6K9K
TAA Compliant : Yes
