Product Overview
The new X series cameras utilize AI to detect and classify people, vehicles, faces, license plates and more in real-time. With a range of available resolutions from 2MP to 4K, the cameras’ deep-learning algorithms can reliably identify multiple distinct objects. Reduce false alarms due to none interesting motion, like wind-blown trees, shadows, or animals. Analytics become a reliable second pair of eyes to operators helping them know where to look for important real-time events, while making post-event forensic searches highly efficient.
General Information

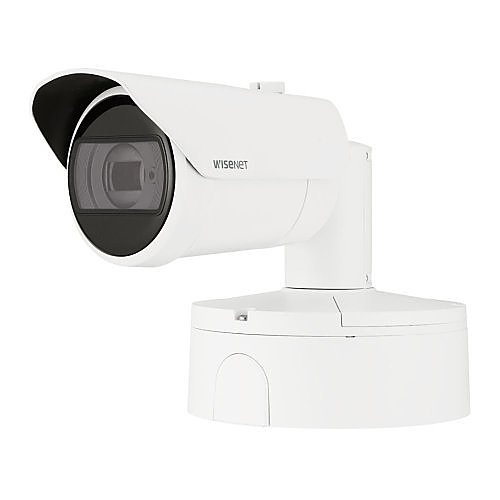

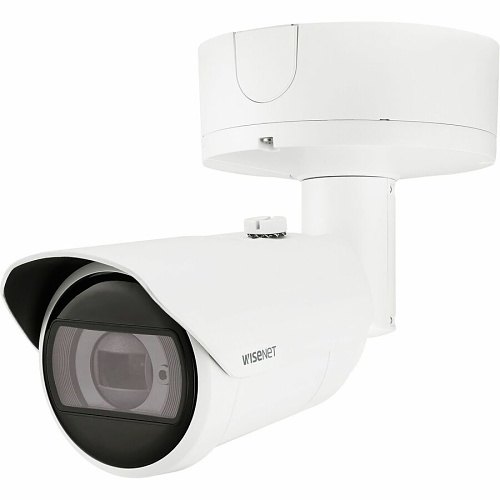

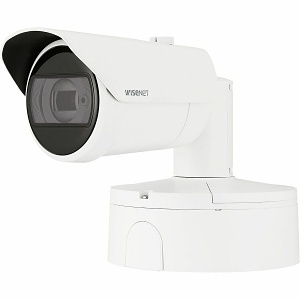

Name : Hanwha XNO-9083R/KEX Series 4K AI IR Bullet IP Camera, 4.4-9.3mm Motorized Varifocal Lens, White, TAA Compliant , Hanwha Vision
Category : Bullet Cameras
UPC Code : 8801089207692
Country of Origin : Korea. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : SQ-XO983RKEX
Brand Name : Hanwha Vision
Manufacturer : Hanwha Group
Manufacturer Part Number : XNO9083RKEX
Product Model : XNO-9083R
Product Name : 4K IR Bullet AI Camera
Product Series : X
Product Type : Network Camera
Weight (Approximate) (g) : 2200
Technical Information
Connectivity Technology : Wired
Effective Camera Resolution : 8MP
Field of View : H : 112.1°(Wide)~47.5°(Tele) V : 58.0°(Wide)~26.6°(Tele) D : 137.5°(Wide)~54.6°(Tele)
HD Recording : Yes
Lens Type : Varifocal
Maximum Aperture : f/1.3
Maximum Focal Length (mm) : 9.3
Maximum Frame Rate : 30 fps
Minimum Focal Length : 4.40 mm
Night Vision : Yes
Night Vision Type : Infrared
Optical Zoom : 2.1x
Camera
Night Vision Distance : 164.04 ft
Night Vision Distance (mm) : 50000
Wide Dynamic Range : Yes
Display & Graphics
Color Supported : Color
Maximum Video Resolution : 1600 x 1200
Environmental Conditions
Maximum Operating Temperature : 140°F (60°C)
Maximum Operating Temperature (°F) : 140
Minimum Operating Temperature : -58°F (-50°C)
Minimum Operating Temperature (°F) : -58
Operating Humidity : 95%
Exposure
Longest Shutter Speed : 2 Second
Shortest Shutter Speed : 1/12000 Second
Interfaces/Ports
Network (RJ-45) : Yes
Lens
Focal Length : 4.4-9.3 mm
Lens Included : Yes
Maximum Focal Length : 9.30 mm
Minimum Aperture : f/2.15
Network & Communication
Remote Management : Yes
Physical Characteristics
Color : White
Color Family : White
Diameter (mm) : 93.4
Form Factor : Bullet
Product Color : White
Weight (Approximate) : 4.85 lb
Power Description
Input Voltage : 12V DC
Input Voltage (V DC) : 12
Product Information
Diameter : 3.7"
Mount Type : Desk Mount, Rack Mount, Wall Mount
Projection Lens
Minimum Focal Length (mm) : 4.4
Storage
Recording Formats : 4K
Storage Type : Memory Card
Video
Analog Video Signal Format : CVBS
Maximum Frame Rate (fps) : 30
Warranty
Limited Warranty : 3 Year
Miscellaneous
Features : Audio Detection, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, PTZ, White Balance, Wide Dynamic Range
Impact Protection Rating : IK10
Ingress Protection Rating : IP66, IP67
TAA Compliant : Yes
