Tripp Lite BC850R 120V Standby UPS with NEMA 5-15R Outlets, 850VA, 450W
BC850R|TC-BC850R
Tripp Lite BC850R 120V Standby UPS with NEMA 5-15R Outlets, 850VA, 450W
BC850R|TC-BC850R
Tripp Lite by Eaton
Tripp Lite BC850R 120V Standby UPS with NEMA 5-15R Outlets, 850VA, 450W
BC850RÂ |Â TC-BC850R
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Main Features
- Low-maintenance standby UPS provides battery backup and surge protection for retail point-of-sale, home networks and wireless access points
- Low-maintenance UPS sets up in minutes to start backing up your equipment
- Keeps power running during brief outages to allow time for safe system shutdown
- Protects up to 5 devices against outages, brownouts, overvoltages, surges and line noise
- Automatically restarts when power is restored, saving you a costly site visit
- Recommended for locations where temperatures range within 32° and 122° F
- 3-year limited warranty
General Information
Name: Tripp Lite BC850R 120V Standby UPS with NEMA 5-15R Outlets, 850VA, 450W
Category: Tripp Lite by Eaton, Data Comm & Networking, Power Products, UPS
UPC Code: 037332282088
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number TC-BC850R Brand Name Tripp Lite by Eaton Manufacturer Tripp Lite by Eaton Manufacturer Part Number BC850R Product Model BC850R Product Name BC850R 850VA Desktop/Surface/Wall Mountable UPS Product Type Standby UPS Weight (Approximate) (g) 3197.826 Â
-
Backup/Run Time (Full Load) 2.50 Minute Backup/Run Time (Full Load) (Second) 150 Backup/Run Time (Half Load) 8 Minute Backup/Run Time (Half Load) (Second) 480 EMI/RFI Noise Filter Yes Load Capacity (VA) 850 VA Number of Battery & Surge Outlets 5 Output Voltage 120V AC Phase Single Phase Receptacle Detail 5 x NEMA 5-15R Receptacle Type NEMA 5-15R Transfer Time 10 ms Transfer Time (Second) 0.01 Â
-
Battery Characteristics Valve-regulated Battery Chemistry Lead Acid DC System Voltage 12 V DC Replaceable Battery Yes Typical Battery Recharge Time 8-Hour Typical Battery Recharge Time (Second) 28800 Â
-
Surge Energy Rating (J) 190 Â
-
Status Indicators LED Indicators:
- Low Battery or Fault Condition
- Power and Line/battery Mode Status
Â
-
Maximum Operating Elevation 6561.68 ft Maximum Operating Elevation (mm) 2000000 Maximum Operating Temperature 122°F (50°C) Maximum Operating Temperature (°F) 122 Â
-

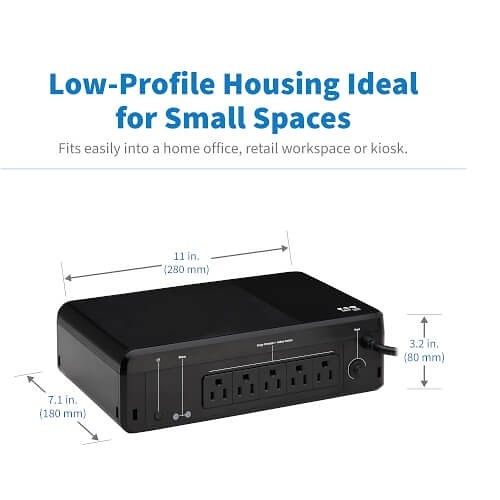

Application/Usage Computer Peripheral, Desktop, Food Service, Home Network, Home/Office, Hospital, Industrial, Kiosk, Network, POS, Retail, wireless access point Depth 7.1" Depth (mm) 179.832 Form Factor Desktop Mount, Surface Mount, Wall Mount Height 3.2" Height (mm) 80.01 Weight (Approximate) 7.05 lb Width 11" Width (mm) 279.908 Â
-
Input Frequency 60 Hz Input Frequency (Hz) 60.000 Input Voltage 120V AC Output Frequency 60 Hz Plug/Connector Type NEMA 5-15P Surge Energy Rating 190 J Waveform Type Pulse-width Modulated Sine Wave Â
-
Load Capacity (VA) (W) 850.000 Load Capacity (W) 850.000 Â
-
Limited Warranty 2 Year Â
-
Energy Star Yes Environmental Certification RoHS Environmentally Friendly Yes Features Audible Alarm, Cold Start Function, Green Energy Saving Package Contents - BC850R 850VA Desktop/Surface/Wall Mountable UPS
- 4 x M4 x 12 mm Screws
- 4 x M4 x 20 mm Screws
- Quick Start Guide
Â
