Product Overview
The VESA-compliant DWT3780XUL Heavy-Duty Tilt Wall Mount allows you to mount your flat-panel or curved-screen television, monitor or other display on the wall. Recommended for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most displays from 37 to 80". A -10° to 0° tilt capability minimizes glare and provides comfortable viewing from multiple angles. Adjusting the tilt angle is simple using the easy-grip twin knobs located on the wall plate. The mount is concealed behind the display to give a sleek, professional appearance. An open back enables easy access to cabling. Built-in bubble level allows accurate wall plate leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 165 lbs (74.8 kgs). Mounting hardware included.
General Information
Name : Tripp Lite DWT3780XUL Heavy-Duty Tilt Wall Mount for 37"-80" TVs and Monitors, Flat or Curved Screens, Black , Tripp Lite by Eaton
Category : Video Monitors
UPC Code : 037332203991
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : TC-DWT3780XU
Brand Name : Tripp Lite by Eaton
Manufacturer : Tripp Lite
Manufacturer Part Number : DWT3780XUL
Product Model : DWT3780XUL
Product Name : DWT3780XUL Wall Mount
Product Type : Wall Mount
Physical Characteristics
Color : Black
Depth (mm) : 203
VESA Mount Standard : 200 x 200, 300 x 300, 400 x 200, 400 x 400, 600 x 400, 800 x 400
Width (mm) : 46
Miscellaneous
Environmental Certification : RoHS
Environmentally Friendly : Yes

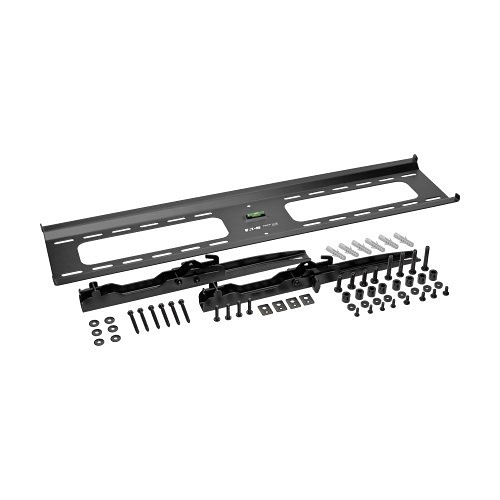

Package Contents : <ul><li>Wall Plate</li><li>2 x Adapter Brackets</li><li>4 x M5 x 14 Screws</li><li>4 x M6 x 14 Screws</li><li>4 x M6 x 30 Screws</li><li>4 x M8 x 30 Screws</li><li>4 x M8 x 50 Screws</li><li>4 x Washers</li><li>and more below</li></ul>, 6 x Anchor Bolts, 6 x Concrete Anchors, 6 x D6 Washers, 8 x Big Spacers, 8 x Small Spacers, Owner's Manual
