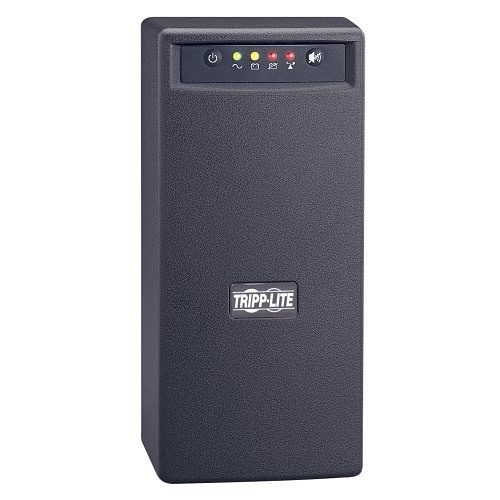

Tripp Lite OMNIVS1000 OmniVS 120V 1000VA 500W Line-Interactive UPS, Tower, USB Port, UPS Battery Supported Outlets, Surge-Only Outlets
OMNIVS1000|TC-OMNIVS100
Tripp Lite OMNIVS1000 OmniVS 120V 1000VA 500W Line-Interactive UPS, Tower, USB Port, UPS Battery Supported Outlets, Surge-Only Outlets
OMNIVS1000|TC-OMNIVS100
Tripp Lite by Eaton
Tripp Lite OMNIVS1000 OmniVS 120V 1000VA 500W Line-Interactive UPS, Tower, USB Port, UPS Battery Supported Outlets, Surge-Only Outlets
OMNIVS1000Â |Â TC-OMNIVS100
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Main Features
- 1000VA / 1kVA tower 120V line interactive UPS
- Corrects brownouts as low as 89V without using battery power

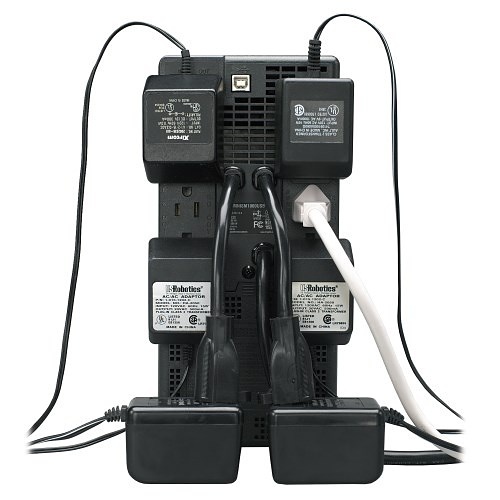

- 6 UPS battery supported outlets, 2 surge-only outlets
- USB port, TEL/DSL/ethernet protection

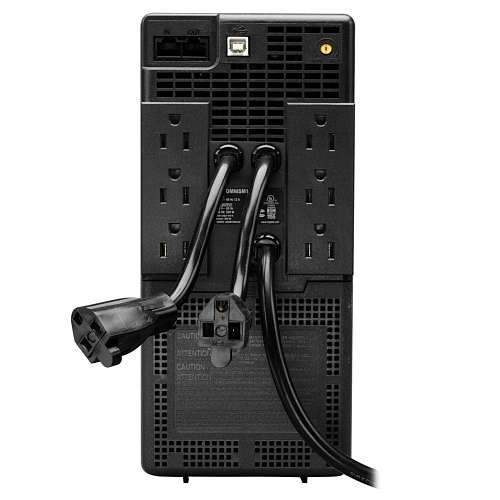

- NEMA 5-15P input plug and 8 NEMA 5-15R outlets
General Information
Name: Tripp Lite OMNIVS1000 OmniVS 120V 1000VA 500W Line-Interactive UPS, Tower, USB Port, UPS Battery Supported Outlets, Surge-Only Outlets
Category: Tripp Lite by Eaton, Batteries & Power Supplies, Data Comm & Networking, Power Management, Power Products, UPS, UPS
UPC Code: 037332119728
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-OMNIVS100 Brand Name Tripp Lite by Eaton Manufacturer Tripp Lite by Eaton Manufacturer Part Number OMNIVS1000 Packaged Quantity 1 Each Product Line OMNI Product Model OMNIVS1000 Product Name 8-Outlet Line Interactive UPS System Product Series VS Product Type Line-interactive UPS Â
-
Dataline Protection RJ-45 Output Voltage 120V AC Receptacle Detail 2 x NEMA 5-15R, 6 x NEMA 5-15R Receptacle Type NEMA 5-15R Transfer Time 4 ms Â
-
Battery Chemistry Lead Acid Battery Life 6 Year Typical Battery Recharge Time 4-Hour Â
-
Output Voltage (V) 120 Surge Energy Rating (J) 480 Â
-

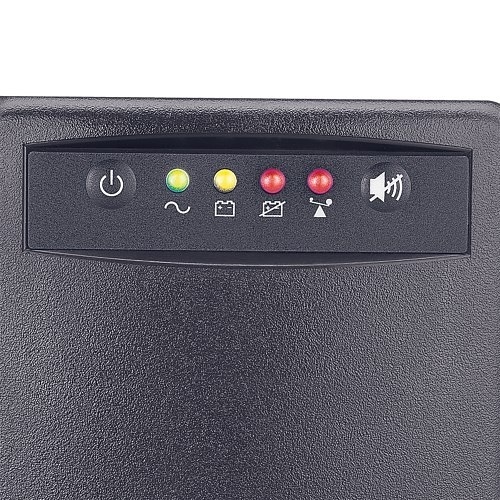

Status Indicators 4 front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage regulation operation Â
-
Maximum Operating Temperature 122°F (50°C) Â
-
Alarm On Battery Â
-
Color Black Color Family Black Depth 7.3" Form Factor tower Height 10.8" Product Color Black Weight (Approximate) 21 lb Width 5.3" Â
-
Input Voltage 110V AC Plug/Connector Type NEMA 5-15P Surge Energy Rating 480 J Waveform Type Pulse-width Modulated Sine Wave Â
-
Load Capacity (VA) (W) 1000VA|500W Load Capacity (W) 1000.000 Â
-
Additional Warranty Information 2 year warranty. $200,000 connected equipment insurance (USA & Canada Only).
Limited Warranty 2-Year Â
-
Package Contents - OMNIVS1000 Line Interactive UPS
- USB and telephone cable
- User manual with warranty information
