OMNIVS1500XLÂ |Â TC-OMNIVS15K
Please sign in to view pricing and availability and to add to cart.
Product Overview
Line Interactive UPS system with eight outlets offers voltage regulation, surge suppression and long-lasting, expandable battery support for personal computers, Internet-working equipment and other sensitive electronics. Internal UPS circuits support entry level PC systems for up to 75 minutes during power failures so that connected equipment can be shut down without data loss. Automatic Voltage Regulation circuits regulate brownouts as low as 75 and overvoltages up to 147 volts back to usable 120V levels without using battery power. Includes six battery supported outlets for computer, monitor and one vital system peripheral, plus two additional surge suppression-only outlets for printers and other system accessories not requiring battery support. Built-in dataline suppression offers protection for equipment with single-line telephone/DSL or network Ethernet connection. Offers 5 minute battery runtime with a full load of 1500VA and 14 minutes with a half load of 750VA.
Main Features
- 1500VA 940W battery backup tower
- Line Interactive UPS with eight outlets
- Voltage regulation and surge suppression
- Supports PC systems for up to 75 minutes
- Automatic Voltage Regulation for brownouts and overvoltages

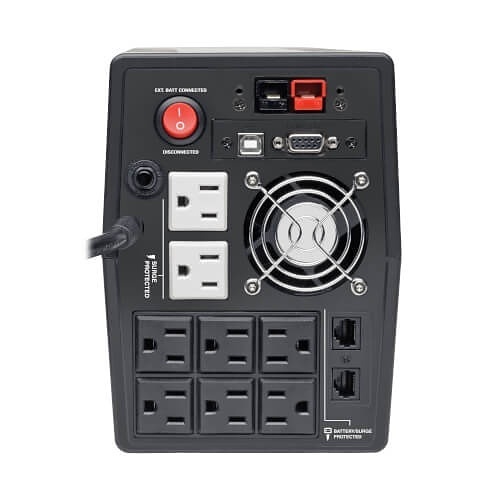

- Six battery-supported outlets and two surge-only outlets
- Built-in dataline suppression for phone/DSL or Ethernet
- 5-minute runtime at full load, 14 minutes at half load
General Information
Specifications
-
ADI Part Number TC-OMNIVS15K Brand Name Tripp Lite by Eaton Manufacturer Tripp Lite Manufacturer Part Number OMNIVS1500XL Packaged Quantity 1 Each Product Line OMNI Product Model OMNIVS1500XL Product Name 8-Outlet UPS Power Protection System Product Series VS Product Type Line-interactive UPS Â
-
Backup/Run Time (Full Load) (Second) 300 Backup/Run Time (Half Load) (Second) 840 Dataline Protection RJ-45 Hot Swappable Yes Receptacle Detail 2 x NEMA 5-15R, 6 x NEMA 5-15R Receptacle Type NEMA 5-15R Transfer Time (Second) 0.004 Â
-
Battery Life (Second) 89342000 Â
-
Status Indicators 4 front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage regulation operation Â
-
Maximum Operating Temperature (°F) 122 Â
-
Alarm On Battery Â
-
Color Black Depth (mm) 190.5 Form Factor Tower Width (mm) 184.15 Â
-
Input Voltage (V AC) 110 Plug/Connector Type NEMA 5-15P Â
-
Load Capacity (W) 1500 Â
-
Package Contents - OMNIVS1500XL Line Interactive UPS
- USB and telephone cable
- User manual with warranty information
TAA Compliant Yes Â
