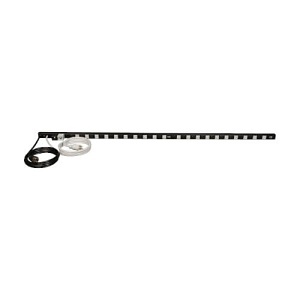

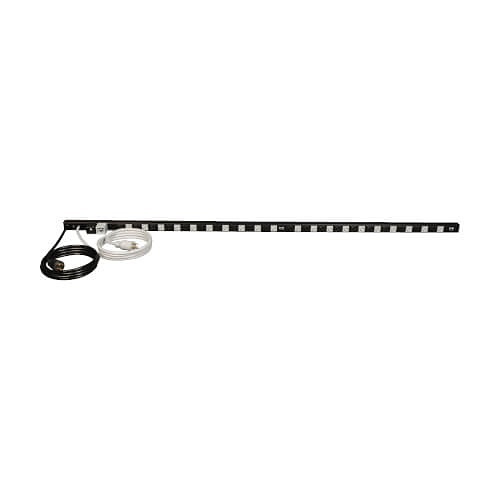

Tripp Lite PDU40TDUAL Single-Phase Dual-Circuit Basic PDU, 10' (3m) Cord, 3.8kW, 120V 32A, 40 NEMA 5-15/20R Outlets, L5-20P/5-20P Inputs, 0U
PDU40TDUAL|TC-PDU40TDUA
Tripp Lite PDU40TDUAL Single-Phase Dual-Circuit Basic PDU, 10' (3m) Cord, 3.8kW, 120V 32A, 40 NEMA 5-15/20R Outlets, L5-20P/5-20P Inputs, 0U
PDU40TDUAL|TC-PDU40TDUA
Tripp Lite by Eaton
Tripp Lite PDU40TDUAL Single-Phase Dual-Circuit Basic PDU, 10' (3m) Cord, 3.8kW, 120V 32A, 40 NEMA 5-15/20R Outlets, L5-20P/5-20P Inputs, 0U
PDU40TDUALÂ |Â TC-PDU40TDUA
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Main Features
- Basic single phase dual circuit 40A 120V PDU
- Functions as two independent 20A PDU systems in a single housing
- Two 10' / 3m NEMA L5-20P / 5-20P compatible inputs
- 40 NEMA 5-15/20R outlets (20 per circuit)
General Information
Name: Tripp Lite PDU40TDUAL Single-Phase Dual-Circuit Basic PDU, 10' (3m) Cord, 3.8kW, 120V 32A, 40 NEMA 5-15/20R Outlets, L5-20P/5-20P Inputs, 0U
Category: Tripp Lite by Eaton, Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code: 037332128409
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-PDU40TDUA Brand Name Tripp Lite by Eaton Manufacturer Tripp Lite by Eaton Manufacturer Part Number PDU40TDUAL Packaged Quantity 1 Product Model PDU40TDUAL Product Name PDU40TDUAL PDU Basic DUAL 20A 40 Outlet Product Type PDU Weight (Approximate) (g) 3628.739 Â
-
Output Voltage 120V AC Output Voltage (V AC) 120 PDU Type Basic Plug/Connector Detail 2 x NEMA L5-20P Power Rating (Watt) 3800 W Power Rating (Watt) (W) 3800 Receptacle Detail 40 x NEMA 5-15/20R Receptacle Type NEMA 5-15/20R Â
-
Output Voltage (V) 120 Â
-
Depth 1.5" Depth (mm) 38.1 Height 3" Height (mm) 76.2 Mounting Orientation Vertical Weight (Approximate) 8 lb Width 65" Width (mm) 1651 Â
-
Input Voltage 120V AC Input Voltage (V AC) 120 Plug/Connector Type NEMA L5-20P Â
-
Mount Type Rack Mount Protection Type Overload Protection Â
-
Limited Warranty 2 Year Lifetime Â
-

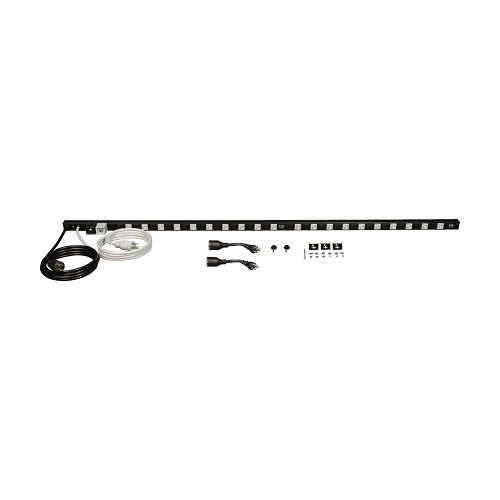

Environmental Certification RoHS Environmentally Friendly Yes Features CAN/CSA-C22.2 No. 60950-1 (Canada); NOM (Mexico); UL 60950-1 Package Contents - PDU40TDUAL PDU Basic DUAL 20A 40 Outlet
- Mounting Hardware
- 2 x NEMA L5-20R to NEMA 5-20P Plug Set Adapters
- Manual with Warranty Information
